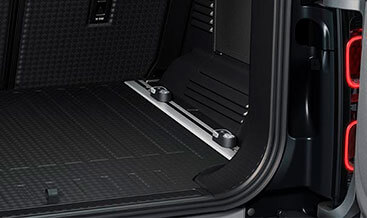

L663 Loadspace storage rails

Product Technical Overview

First, many L663 Defender 110 units leave the factory without fitted loadspace storage rails. Even so, this is a purely mechanical interior cargo accessory. Instead, incorrect bolt torque or misaligned trim removal will create fit‑related risks. For instance, you may hear cargo rattle during off‑road driving. You may also get uneven rail positioning that blocks accessory mounting points. Therefore, this product strictly follows official JLR TOPIX accessory fitting documentation for part number VPLES0543. It uses hard‑wearing black anodised aluminium track construction. It also includes sliding spring‑loaded D‑loops and torque‑rated M8 fasteners. In addition, it uses existing factory load‑floor mounting holes; no irreversible interior‑panel cutting during installation.

Next, Loadspace Storage Rails operate with zero dependency on vehicle ECUs. Suitable workshop reference materials include TEC‑DOC and TOPIX accessory installation manuals. After physical fitment, no mandatory CCF edits or DoIP module programming are needed. To begin, confirm vehicle variant eligibility and check factory floor mounting points. Then, partially remove rear‑loadspace interior trim following TOPIX service steps. Following that, complete mechanical assembly per JLR step‑by‑step 24 Nm torque‑setting procedures. Finally, test sliding D‑loop movement and cargo‑retention functionality. As an option, JLR‑Decoder offers supporting technical documentation access. We do not require VIN‑based remote activation for this mechanical‑only part.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 110, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. Not compatible with 90, 130, PHEV or 5+2 seven‑seat derivatives.
• Hardware Scope: OEM VPLES0543 paired aluminium loadspace rails, spring‑loaded sliding D‑loop tie‑downs, M8 torque‑rated bolts and locating shims.
• Mandatory Fitment Procedures: Partially remove loadspace side trim for bolt access. Apply JLR‑defined 24 Nm torque for every rail fixing. Validate full D‑loop sliding travel. Confirm accessory‑mounting slot clearance afterward.
• Enabled Factory Functions: Adjustable sliding tie‑down anchor points. Compatible with OEM security box and load‑retention net kits. Increased rear‑cargo securing flexibility for overland and leisure equipment.
• Mechanical Requirements: Uses pre‑existing factory load‑floor threaded mounting points. Must respect vehicle official gross payload limits for all secured cargo.
• Deliverables: OEM Loadspace Storage Rails hardware set. TOPIX‑aligned accessory fitting procedure. Access to TEC‑DOC interior‑system reference documentation.

JLR‑Compliant 3‑Stage Fitment Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks factory‑option build data and confirms wheelbase, powertrain and seat‑configuration status. As a result, you confirm full compatibility before you place your order. 90, 130, PHEV and seven‑seat vehicles cannot use this rail kit.
2. Pre‑Fit Hardware & Trim Preparation: Start by examining factory load‑floor threaded mounting points following TOPIX accessory safety guidance. Then partially detach relevant loadspace interior side‑trim panels. Inspect mounting threads for debris or corrosion. Resolve any floor‑panel defects before rail assembly work begins.
3. Mechanical Fitment & Validation: Prepare clean load‑floor mounting surfaces. To start, position left‑hand and right‑hand storage rails. After that, fit M8 bolts and torque every fastener strictly to JLR‑documented 24 Nm values. Then install and test all sliding D‑loop anchors. Once finished, refit interior trim panels. In the end, verify D‑loop travel and cargo‑securing function via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

No CCF coding or DoIP diagnostic programming is needed for this interior cargo accessory. You must use the specified 24 Nm torque value for rail fixings. Once you finish fitment, inspect bolt tightness after heavy off‑road usage. Use our JLR‑Decoder documentation resources for updated torque‑value reference. If fasteners are undertorqued, rail shift or cargo rattle will occur. Furthermore, this product supplies only the storage‑rail and D‑loop assembly. It does not include security boxes, retention nets or additional cargo accessories.

What You Receive

Your order includes OEM‑grade L663 Loadspace Storage Rails hardware set. It contains VPLES0543 paired aluminium cargo rails, spring‑loaded sliding D‑loops, M8 torque‑rated fasteners and locating shim parts. You also receive technical fitting guidance plus access to relevant TEC‑DOC interior‑system resources. At checkout, you only select physical‑hardware purchase. Meanwhile, workshop clients may add print tokens for licensed TOPIX accessory‑fitment document exports.
