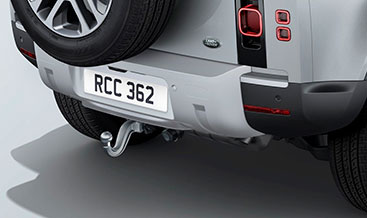

L663 Detachable towbar

Product Technical Overview

First, many L663 Defender variants leave production without factory‑fitted towing hardware. Even if you physically install the detachable tow‑bar mechanical hardware, trailer‑lighting and vehicle towing functions will not activate. Instead, the vehicle will store persistent DTC faults inside TBM, BCM and gateway modules. For instance, you may experience non‑functional trailer lamp outputs. You may also trigger towing‑module communication fault codes like B1D10‑00. Therefore, this retrofit strictly follows official JLR TOPIX accessory fitting documentation for VPLET0272. It uses EC‑approved Westfalia‑manufactured tow‑bar construction with quick‑release lockable swan‑neck hitch. It also includes dedicated TBM control unit, 13‑pin ISO trailer harness and OEM pin‑matched sealed connectors. In addition, controlled rear bumper cut‑out is required per JLR dimensional templates during installation.

Next, full detachable tow‑bar functionality requires DoIP‑capable diagnostic hardware. Suitable tools include JLR Enet, JET Pro or Pathfinder software. After physical fitment, you must complete several mandatory diagnostic tasks. To begin, edit CCF parameters to enable towing‑system feature‑flags. Then, run TBM module initialization and CAN‑gateway node‑recognition service routine. Following that, perform trailer‑circuit load‑test validation. Finally, clear all retrofit‑related DTC entries. As an option, JLR‑Decoder offers on‑site configuration support. We also provide worldwide remote VIN‑based activation service.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants; compliant for up to 3500 kg braked trailer weight, 200 kg vertical nose‑load rating.
• Hardware Scope: OEM VPLET0272 detachable tow‑bar main chassis, lockable removable swan‑neck hitch, TBM towing‑control‑module, 13‑pin ISO trailer wiring harness and torque‑rated mounting fasteners.
• Mandatory Diagnostic Procedures: Enable tow‑bar CCF feature flags. Execute TBM module initialization and CAN‑gateway node‑recognition. Validate 13‑pin trailer circuit outputs. Scan and erase all stored DTCs afterward.
• Enabled Factory Functions: Quick‑release lockable removable tow‑ball. 13‑pin ISO trailer lighting circuits. Trailer stability assist integration, trailer‑status feedback within Pivi Pro infotainment menus.
• Electrical Interface: 12 V vehicle power supply. CAN‑FD body‑system communication. OEM sealed pin‑compatible connectors; ISO‑11446 trailer electrical standard.
• Deliverables: OEM Detachable Towbar hardware set. TOPIX‑aligned accessory fitting procedure. Access to TEC‑DOC towing‑system interactive wiring diagrams.

JLR‑Compliant 3‑Stage Retrofit Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks factory build‑data, chassis load‑specification and gateway‑module variant. As a result, you confirm full compatibility before you place your order. Certain heavy‑option vehicles require additional chassis‑bracket reinforcement.
2. Physical Hardware Installation: Start by disconnecting the 12V battery following TOPIX safety guidance. Then remove rear bumper assembly and perform template‑guided bumper cut‑out. Fit main tow‑bar chassis to factory chassis mounting points. Install TBM module, route and secure 13‑pin trailer wiring harness. Refit bumper trim and reconnect vehicle battery.
3. DoIP Diagnostic Activation & Validation: Connect your DoIP VCI interface. To start, edit CCF and activate towing‑system feature parameters. After that, run TBM initialization plus CAN‑gateway node‑recognition service routine. Then execute full trailer‑circuit functional test. Once finished, clear all retrofit‑generated DTCs. In the end, verify trailer‑assist and Pivi‑Pro towing‑status via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

Pure software‑only activation cannot add towing functionality to base‑spec vehicles. You must install physical tow‑bar chassis, swan‑neck hitch plus valid TBM module and 13‑pin harness. Once you finish the retrofit, run a complete module scan. Use our JLR‑Decoder DTC library to check for towing‑system fault codes. If TBM node‑recognition fails, trailer‑lighting and stability‑assist functions remain inactive. Furthermore, this kit supplies detachable tow‑bar hardware only; painted bumper tow‑eye cover sold separately. Always respect vehicle GVW and published towing‑nose‑load limits.

What You Receive

Your order includes OEM‑grade L663 Detachable Towbar hardware set. It contains VPLET0272 main tow‑bar chassis, lockable swan‑neck hitch, TBM towing‑control‑module, 13‑pin trailer harness and mounting fastener parts. You also receive technical fitting guidance plus access to relevant TEC‑DOC towing‑system resources. At checkout, you can select self‑configuration or our remote JLR diagnostic activation service. Meanwhile, workshop clients may add print tokens for licensed TOPIX service‑document exports.
