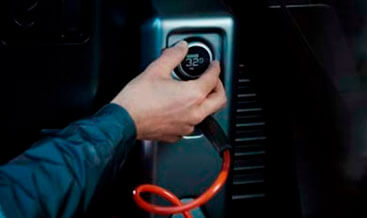

L663 Integrated Air Compressor

Product Technical Overview

First, many L663 Defender MHEV variants leave production without the factory integrated air compressor. Even if you physically install the mechanical and wiring hardware, digital control and Bluetooth connectivity will not operate. Instead, the vehicle will store persistent DTC faults within BCM, rear‑junction‑box and the IAC internal controller. For instance, you may encounter E4 / E6 on‑unit error codes, or complete compressor inactivity after power‑up. Therefore, this retrofit strictly follows official JLR TOPIX accessory fitting documentation for VPLES0574 / VPLES0617. It uses OEM Eiger‑grey load‑space housing, digital pressure‑control logic, self‑coiling 5‑metre air‑hose and multi‑purpose nozzle attachments. It also includes vehicle‑specific mounting brackets and OEM pin‑matched sealed connectors. In addition, it re‑uses existing load‑space mounting points; no irreversible body‑shell cutting during installation.

Next, full Integrated Air Compressor functionality requires DoIP‑capable diagnostic hardware. Suitable tools include JLR Enet, JET Pro or Pathfinder software. After physical fitment, you must complete several mandatory diagnostic tasks. To begin, edit CCF parameters to enable integrated‑air‑compressor feature‑flags. Then, execute IAC control‑module software configuration and CAN‑body node‑recognition service routine. Following that, perform pressure‑inflate / deflate functional validation. Finally, clear all retrofit‑related DTC entries. As an option, JLR‑Decoder offers on‑site configuration support. We also provide worldwide remote VIN‑based activation service.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 MHEV, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. Not compatible with OCTA, PHEV or 130 base vehicles.
• Hardware Scope: OEM VPLES0574 / VPLES0617 integrated air‑compressor assembly, Bluetooth‑enabled control unit, load‑space mounting brackets, self‑coiling 5‑m air‑hose, nozzle accessories and dedicated wiring harness.
• Mandatory Diagnostic Procedures: Enable IAC CCF feature flags. Execute IAC‑module configuration and CAN‑body node‑recognition. Validate inflate‑deflate pressure cycles. Scan and erase all stored DTCs afterward.
• Enabled Factory Functions: Pre‑set tyre inflate / deflate pressure control. Bluetooth mobile‑device connectivity. Multi‑use inflation for air‑mattresses and off‑road equipment. OEM diagnostic error‑code reporting (E4, E6) for fault‑tracing.
• Electrical Interface: 12 V rear‑junction‑box power supply. CAN‑body communication bus, Bluetooth peripheral link, OEM sealed pin‑compatible connectors.
• Deliverables: OEM Integrated Air Compressor hardware set. TOPIX‑aligned accessory fitting procedure. Access to TEC‑DOC interior‑system interactive wiring diagrams.

JLR‑Compliant 3‑Stage Retrofit Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks factory‑option build‑data, MHEV status and rear‑junction‑box hardware variant. As a result, you confirm full compatibility before you place your order. OCTA, PHEV and Defender 130 chassis cannot use this IAC kit.
2. Physical Hardware Installation: Start by disconnecting the 12V battery following TOPIX safety guidance. Then remove relevant load‑space interior trim panels. Fit IAC main‑unit and variant‑specific mounting brackets. Route and secure the dedicated wiring harness to rear‑junction‑box connections. Refit interior trim panels and reconnect vehicle battery.
3. DoIP Diagnostic Activation & Validation: Connect your DoIP VCI interface. To start, edit CCF and activate integrated‑air‑compressor feature parameters. After that, run IAC‑module configuration plus CAN‑body node‑recognition service routine. Then execute complete inflate‑deflate pressure‑cycle functional test. Once finished, clear all retrofit‑generated DTCs. In the end, verify Bluetooth pairing and error‑code behaviour via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

Pure software‑only activation cannot add integrated‑air‑compressor functionality to base‑spec vehicles. You must install physical compressor assembly plus matching OEM wiring harness. Once you finish the retrofit, run a complete module scan. Use our JLR‑Decoder DTC library to check for CAN‑bus and IAC‑controller fault‑codes. If node‑recognition fails, Bluetooth and pressure‑control functions remain inactive. Furthermore, this kit supplies only the load‑space‑mounted integrated air‑compressor unit. It does not include spare‑wheel, tyre‑repair‑kit or separate portable inflation tools.

What You Receive

Your order includes OEM‑grade L663 Integrated Air Compressor hardware set. It contains VPLES0574 / VPLES0617 compressor assembly, Bluetooth control‑module, mounting brackets, self‑coiling air‑hose, nozzle accessories and wiring‑harness parts. You also receive technical fitting guidance plus access to relevant TEC‑DOC interior‑system resources. At checkout, you can select self‑configuration or our remote JLR diagnostic activation service. Meanwhile, workshop clients may add print tokens for licensed TOPIX service‑document exports.
