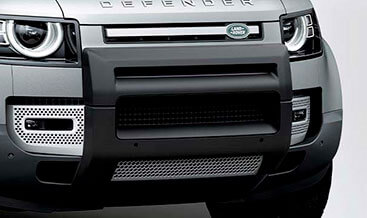

L663 ‘A’ Frame Protection Bar

Product Technical Overview

First, many L663 Defender units leave the factory without the ‘A’ Frame Protection Bar off‑road accessory. Even so, this is a purely mechanical exterior protective accessory. Instead, misaligned mounting or incorrect fastener torque will create fit‑related risks. For instance, you may hear persistent front‑end rattle at highway speeds. You may also see bumper‑surface scuffing from bar‑to‑body contact. Therefore, this product strictly follows official JLR TOPIX accessory fitting documentation for VPLEP0385. It uses high‑strength impact‑resistant polymer with OEM anthracite finish. It also includes reinforced mounting brackets and torque‑rated fasteners. In addition, it requires controlled lower‑grille drilling per JLR dimensional templates during installation.

Next, the ‘A’ Frame Protection Bar operates with zero dependency on vehicle ECUs. Suitable workshop reference materials include TEC‑DOC and TOPIX accessory installation manuals. After physical fitment, no mandatory CCF edits or DoIP module programming are needed. To begin, confirm critical incompatibility rules for winch kits and 3D surround‑camera vehicles. Then, inspect front bumper and grille mounting locations for prior damage. Following that, complete mechanical assembly per JLR step‑by‑step torque‑sequence procedures. Finally, perform gap‑alignment and anti‑rattle validation checks. As an option, JLR‑Decoder offers supporting technical documentation access. We do not require VIN‑based remote activation for this mechanical‑only part.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. Not compatible with electric winch kits, winch mounting hardware or factory 3D surround‑camera systems.
• Hardware Scope: OEM VPLEP0385 ‘A’ Frame main guard assembly, reinforced mounting brackets, drilling template, torque‑rated fasteners and anti‑vibration foam shims.
• Mandatory Fitment Procedures: Confirm vehicle incompatibility status first. Use supplied JLR drilling template for lower‑grille cut‑outs. Apply defined torque values in correct tightening sequence. Validate bumper‑to‑bar gap clearance and anti‑vibration behaviour afterward.
• Enabled Factory Functions: Off‑road front‑bumper stone‑impact protection. OEM‑tested pedestrian‑impact compliance. Rugged anthracite exterior styling matching Defender off‑road accessory range.
• Mechanical Requirements: Requires precision lower‑grille template‑guided drilling. Inspect bracket fastener tension after heavy off‑road trail usage.
• Deliverables: OEM ‘A’ Frame Protection Bar hardware set. TOPIX‑aligned accessory fitting procedure. Access to TEC‑DOC exterior‑system reference documentation.

JLR‑Compliant 3‑Stage Fitment Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks factory‑option build data and confirms surround‑camera and winch‑kit fitment status. As a result, you confirm full compatibility before you place your order. Vehicles fitted with 3D surround camera or winch hardware cannot use this OEM ‘A’‑frame kit.
2. Pre‑Fit Hardware & Bumper Preparation: Start by examining front bumper and lower grille following TOPIX accessory safety guidance. Then apply the official drilling template to mark grille cut‑out positions. Inspect surrounding bumper panels for prior impact damage. Resolve any panel defects before drilling‑operations begin.
3. Mechanical Fitment & Validation: Prepare clean bumper‑mounting surfaces. To start, complete template‑guided lower‑grille drilling and fit mounting brackets. After that, position main ‘A’‑frame guard and torque fasteners strictly per JLR‑defined tightening‑sequence values. Then fit anti‑vibration foam shims where specified. Once finished, inspect all bumper‑to‑bar gap dimensions. In the end, carry out road‑test for front‑end rattle via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

No CCF coding or DoIP diagnostic programming is needed for this off‑road accessory. You must strictly adhere to JLR drilling templates and torque sequences. Once you finish fitment, periodically inspect all bracket fasteners after heavy off‑road use. Use our JLR‑Decoder documentation resources for template and torque‑value reference. If fasteners are undertorqued, vibration‑loosening or bumper scuffing will occur. Furthermore, this product supplies only the OEM ‘A’ Frame Protection Bar kit. It does not include winch assemblies, undershield skid‑plates or replacement bumper‑grille components.

What You Receive

Your order includes OEM‑grade L663 ‘A’ Frame Protection Bar hardware set. It contains VPLEP0385 main guard assembly, reinforced mounting brackets, drilling template, torque‑rated fasteners and anti‑vibration foam shim parts. You also receive technical fitting guidance plus access to relevant TEC‑DOC exterior‑system resources. At checkout, you only select physical‑hardware purchase. Meanwhile, workshop clients may add print tokens for licensed TOPIX accessory‑fitment document exports.
