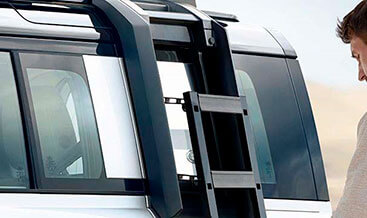

L663 Deployable Roof Ladder

Product Technical Overview

First, many L663 Defender 90 / 110 units leave the factory without the deployable roof‑ladder option. Even so, this is a purely mechanical overland exterior accessory. Instead, misaligned mounting or incorrect fastener torque will create fitment‑related risks. For instance, you may hear excess highway wind‑noise. You may also experience stiff ladder deployment or latching‑mechanism failure. Therefore, this product strictly follows official JLR TOPIX accessory fitting documentation for VPLER0189. It uses powder‑coated aluminium side rails with rubber‑grip coated upper and lower steps. It also includes lockable stow‑latch, variant‑specific brackets and torque‑rated fasteners. In addition, it re‑uses factory roof‑rail and body‑side mounting points; no irreversible body‑shell cutting during installation.

Next, the Deployable Roof Ladder operates with zero dependency on vehicle ECUs. Suitable workshop reference materials include TEC‑DOC and TOPIX accessory installation manuals. After physical fitment, no mandatory CCF edits or DoIP module programming are needed. To begin, confirm critical incompatibility rules for V8 powertrains and side‑mounted gear‑carrier hardware. Then, inspect factory roof‑rail and body‑side mounting lugs for deformation or corrosion. Following that, complete mechanical assembly per JLR step‑by‑step torque‑setting procedures. Finally, test two‑stage deployment, lock‑latch function and stow‑position rattle check. As an option, JLR‑Decoder offers supporting technical documentation access. We do not require VIN‑based remote activation for this mechanical‑only part.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. Requires factory‑fitted roof rails; not compatible with V8 powertrains. When paired with side‑mount gear‑carrier, ladder must mount only to vehicle left‑hand side.
• Hardware Scope: OEM VPLER0189 two‑stage deployable roof‑ladder assembly, lock‑and‑key stow‑latch, rubber‑coated grip steps, mounting brackets and torque‑rated fasteners.
• Mandatory Fitment Procedures: Confirm roof‑rail presence and accessory‑compatibility constraints. Apply JLR‑defined torque values for every mounting fastener. Validate smooth two‑stage deployment and secure locked stow position. Check for highway wind‑noise and stow‑rattle afterward.
• Enabled Factory Functions: Two‑stage compact deploy‑mechanism for safe roof‑access. 150 kg maximum static working load rating. Key‑lockable stowed‑position security. OEM‑matched anthracite exterior finish for overland use.
• Mechanical Requirements: Factory roof rails are mandatory fitment prerequisite. Do not exceed published 150 kg ladder working‑load limit; respect original vehicle roof payload rating.
• Deliverables: OEM Deployable Roof Ladder hardware set. TOPIX‑aligned accessory fitting procedure. Access to TEC‑DOC exterior‑system reference documentation.

JLR‑Compliant 3‑Stage Fitment Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks factory‑option build data and confirms roof‑rail, powertrain and existing side‑accessory fitment status. As a result, you confirm full compatibility before you place your order. V8‑equipped vehicles cannot use this deployable roof‑ladder kit.
2. Pre‑Fit Hardware & Mount‑Point Inspection: Start by examining factory roof‑rail and body‑side mounting lugs following TOPIX accessory safety guidance. Then cross‑reference against JLR dimensional fitment tables. Inspect mounting points for bending or surface corrosion. Resolve any body‑panel defects before ladder‑assembly work begins.
3. Mechanical Fitment & Validation: Prepare clean roof‑rail and body‑side mounting surfaces. To start, position main ladder‑assembly and fit variant‑specific support brackets. After that, torque every fastener strictly to JLR‑documented torque values. Then test full two‑stage deployment and key‑operated stow‑lock function. Once finished, inspect stowed‑position gap alignment. In the end, perform rattle and deployment‑cycle validation via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

No CCF coding or DoIP diagnostic programming is needed for this overland accessory. You must retain fully functional factory roof‑rails. Once you finish fitment, inspect bracket fastener torque and latch‑mechanism operation after heavy off‑road usage. Use our JLR‑Decoder documentation resources for updated torque‑value reference. If fasteners are undertorqued, vibration‑loosening or stow‑position rattle will occur. Furthermore, this product supplies only the deployable roof‑ladder assembly. It does not include factory roof rails, roof‑rack platforms or separate side‑mount gear‑carrier hardware.

What You Receive

Your order includes OEM‑grade L663 Deployable Roof Ladder hardware set. It contains VPLER0189 two‑stage deployable ladder unit, lock‑and‑key stow‑latch, rubber‑grip steps, mounting brackets and torque‑rated fastener parts. You also receive technical fitting guidance plus access to relevant TEC‑DOC exterior‑system resources. At checkout, you only select physical‑hardware purchase. Meanwhile, workshop clients may add print tokens for licensed TOPIX service‑document exports.
