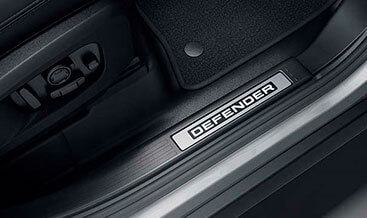

L663 Illuminated Treadplates – Ebony

Product Technical Overview

First, many L663 Defender variants leave production without factory illuminated door‑sill treadplates. Even if you physically fit the Ebony LED treadplate hardware, the illumination function will not activate. Instead, the vehicle will store persistent DTC faults within the BCM body‑control‑module and door‑control units. For instance, you may see no LED lighting when opening doors. You may also trigger LIN‑bus peripheral fault codes such as B127C‑00. Therefore, this retrofit strictly follows official JLR TOPIX accessory fitting documentation. It uses wear‑resistant stainless‑steel Ebony‑theme treadplates with etched Defender branding and integrated low‑draw LED elements. It also includes LIN‑bus signal harness and OEM pin‑matched sealed connectors. In addition, it uses existing factory sill mounting points with no irreversible interior‑panel cutting during installation.

Next, full illuminated‑treadplate functionality requires DoIP‑capable diagnostic hardware. Suitable tools include JLR Enet, JET Pro or Pathfinder software. After physical fitment, you must complete several mandatory diagnostic tasks. To begin, edit CCF parameters to enable the illuminated‑sill feature flag. Then, run BCM LIN‑bus peripheral node‑recognition routine. Following that, validate door‑open trigger illumination behaviour. Finally, clear all retrofit‑related DTC entries. As an option, JLR‑Decoder offers on‑site configuration support. We also provide worldwide remote VIN‑based activation service.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. Matches factory Ebony interior trim specification.
• Hardware Scope: OEM Ebony illuminated front‑door treadplate pair, LIN‑bus wiring harness, replacement interior retaining clips and mounting fixtures.
• Mandatory Diagnostic Procedures: Enable illuminated‑treadplate CCF feature flags. Execute BCM LIN‑bus peripheral node recognition. Validate door‑triggered LED illumination. Scan and erase all stored DTCs afterward.
• Enabled Factory Functions: Etched Defender‑script LED illumination upon door opening. Auto‑dimming linked to cabin ambient‑lighting conditions. Stainless‑steel sill surface protection against scuffs and abrasion.
• Electrical Interface: 12 V vehicle power supply. LIN‑bus body‑system communication. OEM sealed pin‑compatible connectors.
• Deliverables: OEM Ebony Illuminated Treadplates hardware set. TOPIX‑aligned accessory fitting procedure. Access to TEC‑DOC interior‑system interactive wiring diagrams.

JLR‑Compliant 3‑Stage Retrofit Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks factory interior‑trim colour, existing LIN‑bus provision and gateway‑module variant. As a result, you confirm full compatibility before you place your order. Non‑Ebony interior trims will produce visual‑mismatch results.
2. Physical Hardware Installation: Start by disconnecting the 12V battery per TOPIX safety instructions. Then remove original non‑illuminated sill treadplates and lower door‑aperture trim panels. Fit the OEM Ebony illuminated treadplate assemblies. Next, route and lock‑in the LIN‑bus wiring harness. Lastly, refit interior trim panels and reconnect vehicle battery.
3. DoIP Diagnostic Activation & Validation: Connect your DoIP VCI interface. To start, edit CCF and activate illuminated‑treadplate feature parameters. After that, run BCM LIN‑bus peripheral node‑recognition service routine. Then verify LED trigger action with each individual door‑open cycle. Once finished, clear all retrofit‑generated DTCs. In the end, confirm auto‑dimming behaviour via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

Pure software‑only activation cannot add illuminated‑treadplate functionality to base‑spec vehicles. You must install physical Ebony LED treadplate hardware plus valid LIN‑bus harness. Once you finish the retrofit, run a complete module scan. Use our JLR‑Decoder DTC library to check for LIN‑bus system fault codes. If LIN‑bus node recognition fails, LED illumination will remain inactive. Furthermore, this kit covers front‑door treadplates only. Rear illuminated sill hardware is sold as a separate product.

What You Receive

Your order includes OEM‑grade L663 Illuminated Treadplates – Ebony hardware set. It contains Ebony‑themed front LED treadplate pair, LIN‑bus wiring harness and replacement interior‑clip parts. You also receive technical fitting guidance plus access to relevant TEC‑DOC interior‑system resources. At checkout, you can select self‑configuration or our remote JLR diagnostic activation service. Meanwhile, workshop clients may add print tokens for licensed TOPIX service‑document exports.
