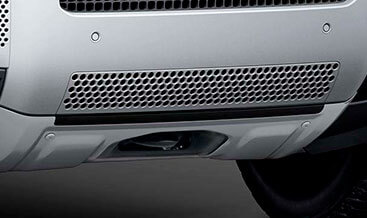

L663 Front Undershield

Product Technical Overview

First, many L663 Defender units leave the factory without the heavy‑duty front undershield. Even so, this is a purely mechanical off‑road protective accessory. Instead, incorrect torque values or misaligned support brackets will create fitment‑related risks. For instance, you may get excessive under‑body road noise at cruising speeds. You may also see bracket fatigue from repeated trail impacts. Therefore, this product strictly follows official JLR TOPIX accessory fitting documentation for part numbers VPLEP0436 (silver) and VPLLE0034 (black). It uses corrosion‑resistant 5‑mm anodised aluminium plate construction. It also includes reinforced support bar, M10 grade fasteners and anti‑vibration shims. In addition, it requires no irreversible chassis cutting during installation.

Next, the Front Undershield operates with zero dependency on vehicle ECUs. Suitable workshop reference materials include TEC‑DOC and TOPIX accessory installation manuals. After physical fitment, no mandatory CCF edits or DoIP module programming are needed. To begin, confirm vehicle compatibility and check for pre‑fitted A‑frame expedition bar interference. Then, raise vehicle to workshop safe working height and inspect original under‑body mounting points. Following that, complete mechanical assembly per JLR step‑by‑step torque‑sequence procedures. Finally, perform gap‑alignment and road‑noise validation checks. As an option, JLR‑Decoder offers supporting technical documentation access. We do not require VIN‑based remote activation for this mechanical‑only part.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. Not compatible with pre‑installed A‑Frame expedition protection bars or factory‑fitted electric winch assemblies.
• Hardware Scope: OEM 5‑mm anodised aluminium undershield plate, reinforced support‑bar assembly, M10 torque‑rated fasteners and anti‑vibration shims. Silver VPLEP0436 / Black VPLLE0034 finish options available.
• Mandatory Fitment Procedures: Raise vehicle on approved two‑post lift. Inspect chassis mounting lugs for deformation. Apply JLR‑defined 60 Nm torque values for all critical fixings. Validate plate gaps, anti‑vibration behaviour and recovery‑loop access afterward.
• Enabled Factory Functions: Off‑road protection for front lower bumper and radiator assembly. Unobstructed factory recovery‑loop access. OEM‑tested pedestrian‑impact compliance. Enhanced corrosion resistance for harsh off‑road environments.
• Mechanical Requirements: Must use workshop two‑post lift for safe installation. Maintain specified torque settings; inspect bracket condition after heavy off‑road impacts.
• Deliverables: OEM Front Undershield hardware set. TOPIX‑aligned accessory fitting procedure. Access to TEC‑DOC exterior‑system reference documentation.

JLR‑Compliant 3‑Stage Fitment Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks factory‑option build data and confirms bumper, winch and A‑frame fitment status. As a result, you confirm full compatibility before you place your order. Vehicles fitted with A‑frame bar or electric winch cannot use this undershield kit.
2. Pre‑Fit Hardware & Chassis Inspection: Start by raising vehicle on a rated two‑post lift following TOPIX accessory safety guidance. Then inspect chassis mounting lugs for bending or surface corrosion. Resolve any under‑body damage before beginning assembly work.
3. Mechanical Fitment & Validation: Prepare clean chassis mounting surfaces. To start, fit the reinforced support‑bar assembly. After that, position the aluminium undershield plate and torque every M10 fastener strictly to JLR‑documented 60 Nm values. Then fit anti‑vibration shims as specified. Once finished, visually inspect all plate‑to‑bumper gaps. In the end, verify recovery‑loop clearance and perform road‑test for under‑body noise via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

No CCF coding or DoIP diagnostic programming is needed for this off‑road accessory. You must use rated vehicle lifting equipment for installation. Once you finish fitment, inspect fastener torque and bracket condition after heavy off‑road use. Use our JLR‑Decoder documentation resources for updated torque‑value reference. If fasteners are undertorqued, vibration‑loosening or plate rattle will occur. Furthermore, this product supplies only the front undershield kit. It does not include A‑frame bars, winch hardware or additional under‑body skid‑plate components.

What You Receive

Your order includes OEM‑grade L663 Front Undershield hardware set. It contains 5‑mm aluminium undershield plate, reinforced support bar, M10 torque‑rated fasteners and anti‑vibration shim parts. You also receive technical fitting guidance plus access to relevant TEC‑DOC exterior‑system resources. At checkout, you only select physical‑hardware purchase. Meanwhile, workshop clients may add print tokens for licensed TOPIX accessory‑fitment document exports.
