Unichip Backup Camera Interface OEM Integrated for JLR with Dual Multimedia Display

Unichip Backup Camera Interface OEM Integrated for JLR with Dual Multimedia Display — Product Overview

This Unichip dual‑multimedia camera interface delivers OEM‑grade reversing‑camera integration for JLR vehicles fitted with factory Dual‑Multimedia Display Harman infotainment systems. First, many base‑trim JLR DoIP‑platform units ship without native rear‑camera video input. Meanwhile, this dedicated Unichip hardware injects LVDS video streams directly into the original dual‑screen multimedia unit. Independent retrofit garages use this kit to add rear‑vision safety functions without swapping the OEM head‑unit assembly.

In addition, this kit supplies vehicle‑specific Fakra and power inline harnesses. You keep the original factory wiring intact during physical installation. After hardware fitting, you must modify vehicle CCF parameters to unlock video‑input channels. Use our JET Pro JLR Engineering Tool for full‑module post‑installation scanning. Also review SDD & Pathfinder offline installation if your workshop still lacks suitable JLR diagnostic software.

Core technical functions of Unichip dual‑multimedia interface

• Reverse‑Gear Auto‑Trigger: Automatically switch the factory dual‑multimedia display to rear‑camera view immediately on reverse‑gear selection.
• Dynamic Parking‑Guideline Overlay: Output moving trajectory guide‑lines to assist low‑speed parking and tight‑space vehicle manoeuvres.
• Multi‑Source Video Inputs: Accept rear‑camera signal, front HD‑camera feed, DVR recorder input and VGA‑HD 360‑degree panoramic camera video sources.
• Dual‑Multimedia LVDS Compatibility: Works with OEM Harman Dual‑Multimedia Display LVDS‑based infotainment fitted on supported JLR DoIP chassis.
• Plug‑and‑Play Inline Harness: Direct‑fit Fakra and power loom connects inline with factory infotainment connectors; minimise wire‑splicing operations.

Vehicle Compatibility & Pre‑Fitment Technical Rules

First, validate your infotainment hardware revision before placing your order. This Unichip unit exclusively fits JLR vehicles equipped with genuine factory Dual‑Multimedia Display Harman systems. On the other hand, it will not operate on single‑screen infotainment, older CAN‑bus platforms or revised Pivi‑Pro hardware variants. Moreover, submit your 17‑digit VIN if you need our pre‑sales compatibility verification.

Furthermore, this listing includes only main interface box plus dedicated wiring harness. It does not supply physical rear‑view camera hardware. Always disconnect vehicle 12‑volt battery before starting installation work. After fitment, edit CCF profiles to enable camera‑input functions, then run full DoIP and MOST‑bus scan to clear any newly triggered DTC faults.

Technician Installation Workflow Summary

After checkout, you receive physical hardware shipment. Next, a qualified technician removes the centre‑stack dual‑multimedia infotainment assembly. Meanwhile, the technician inserts the Unichip harness inline between factory Fakra video and power connectors. Once you connect all external RCA video sources, restore battery power and verify reverse‑gear automatic screen‑switch behaviour. After that, perform CCF configuration adjustments and complete module‑health checks via JLR diagnostic software.

Critical Technical Notes

This product provides Unichip main interface unit plus dual‑multimedia‑specific plug‑and‑play harness set. It excludes rear‑camera assemblies, mounting brackets or factory infotainment spare parts. Improper harness routing may trigger MOST‑bus communication drop‑outs. For manufacturer reference resources, open Land‑Rover’s official owner support portal (external link).

What You Receive On Purchase Completion

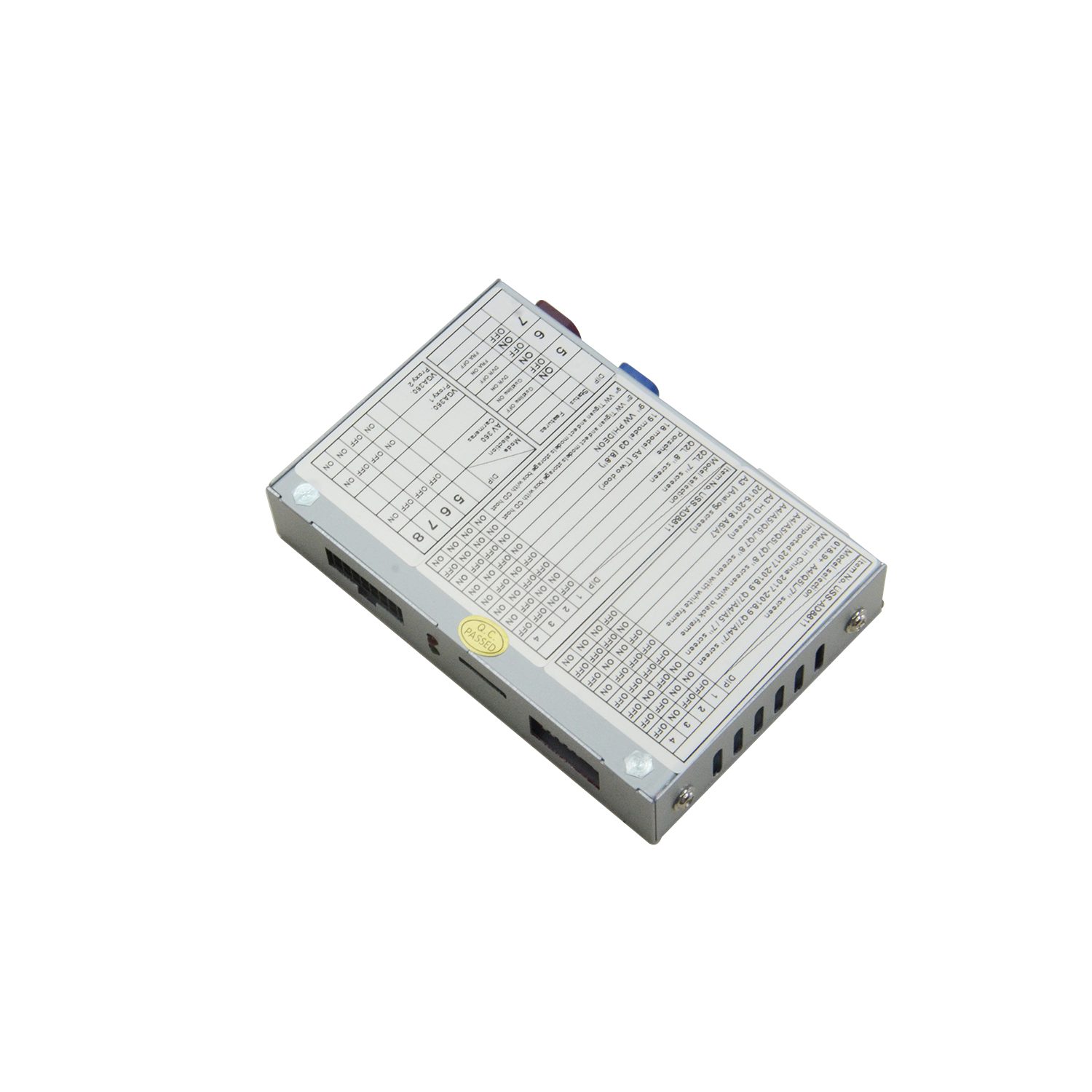

• Unichip OEM‑integrated backup‑camera main interface box for JLR Dual‑Multimedia Display
• Dual‑Multimedia dedicated inline Fakra & power plug‑and‑play harness
• RCA input cables for rear‑cam, front‑cam, DVR and 360‑camera video feeds
• Printed installation manual with complete wiring‑pinout diagrams
• Digital post‑installation CCF‑edit and diagnostic‑verification checklist
