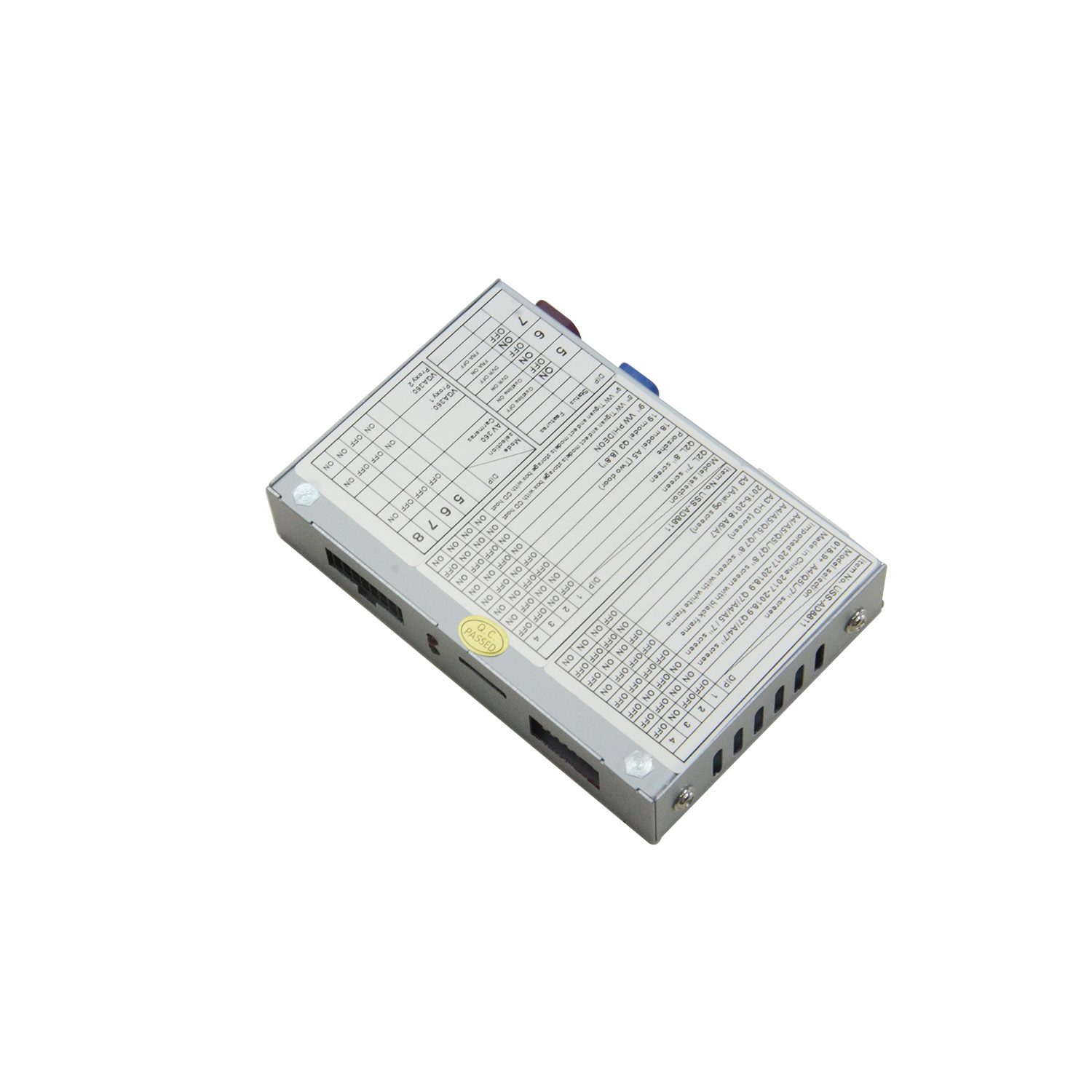

Unichip Backup Camera Interface OEM Integrated for JLR Harman Head Unit with 8″ Screen

Unichip Backup Camera Interface OEM Integrated for JLR Harman Head Unit with 8″ Screen — Product Overview

This Unichip Harman 8‑inch camera interface delivers OEM‑grade reversing‑camera integration for JLR vehicles fitted with Harman InControl Touch 8‑inch factory head‑units. First, many base‑trim JLR models ship without native rear‑camera video input on this 8‑inch infotainment hardware. Meanwhile, this dedicated Unichip hardware injects LVDS video streams directly into the original Harman head‑unit. Independent retrofit garages use this kit to add rear‑vision safety features without swapping the OEM multimedia assembly.

In addition, this kit supplies vehicle‑specific Fakra, LVDS and power inline harnesses. You retain original factory wiring during physical installation. After hardware fitting, you must adjust vehicle CCF parameters to unlock video‑input channels. Use our JET Pro JLR Engineering Tool for full‑module post‑installation scanning. Also review SDD & Pathfinder offline installation if your workshop lacks suitable JLR diagnostic software.

Core technical functions of Unichip Harman 8‑inch interface

• Reverse‑Gear Auto‑Trigger: Automatically switch the Harman 8‑inch display to rear‑camera view immediately on reverse‑gear selection.
• Dynamic Parking‑Guideline Overlay: Output moving trajectory guide‑lines to assist low‑speed parking and tight‑space vehicle manoeuvres.
• Multi‑Source Video Inputs: Accept rear‑camera signal, front HD‑camera feed, DVR recorder input and VGA‑HD 360‑degree panoramic camera video sources.
• Harman 8‑Inch LVDS Compatibility: Works with OEM Harman InControl‑Touch 8‑inch LVDS‑based head‑units fitted on supported JLR CAN‑bus and early DoIP chassis.
• Plug‑and‑Play Inline Harness: Direct‑fit Fakra / LVDS and power loom connects inline with factory infotainment connectors; minimise wire‑splicing operations.

Vehicle Compatibility & Pre‑Fitment Technical Rules

First, validate your infotainment hardware revision before placing your order. This Unichip unit exclusively fits JLR vehicles equipped with genuine Harman InControl‑Touch 8‑inch head‑units. On the other hand, it will not operate on 10‑inch dual‑multimedia, older Bosch systems or revised Pivi‑Pro hardware variants. Moreover, submit your 17‑digit VIN if you need our pre‑sales compatibility verification.

Furthermore, this listing includes only main interface box plus dedicated wiring harness. It does not supply physical rear‑view camera hardware. Always disconnect vehicle 12‑volt battery before starting installation work. After fitment, edit CCF profiles to enable camera‑input functions, then run full MOST‑bus and module scan to clear any newly triggered DTC faults.

Technician Installation Workflow Summary

After checkout, you receive physical hardware shipment. Next, a qualified technician removes the centre‑stack Harman 8‑inch head‑unit assembly. Meanwhile, the technician inserts the Unichip harness inline between factory LVDS, Fakra video and power connectors. Once you connect all external RCA video sources, restore battery power and verify reverse‑gear automatic screen‑switch behaviour. After that, perform CCF configuration adjustments and complete module‑health checks via JLR diagnostic software.

Critical Technical Notes

This product provides Unichip main interface unit plus Harman‑8‑inch‑specific plug‑and‑play harness set. It excludes rear‑camera assemblies, mounting brackets or factory infotainment spare parts. Improper harness routing may trigger MOST‑bus communication drop‑outs. For manufacturer reference resources, open Land‑Rover’s official owner support portal (external link).

What You Receive On Purchase Completion

• Unichip OEM‑integrated backup‑camera main interface box for JLR Harman 8‑inch head‑unit
• Harman 8‑inch dedicated inline LVDS, Fakra & power plug‑and‑play harness
• RCA input cables for rear‑cam, front‑cam, DVR and 360‑camera video feeds
• Printed installation manual with complete wiring‑pinout diagrams
• Digital post‑installation CCF‑edit and diagnostic‑verification checklist
