Unichip Backup Camera Interface OEM Integrated for JLR Harman Head Unit

Unichip Backup Camera Interface OEM Integrated for JLR Harman Head Unit — Product Overview

This Unichip Harman head‑unit camera interface delivers OEM‑grade reversing‑camera integration for Jaguar and Land‑Rover vehicles fitted with factory Harman‑built infotainment hardware. First, many base‑trim JLR models leave production without native rear‑camera video‑input capability. Meanwhile, this dedicated Unichip hardware injects LVDS video streams directly into the original Harman head‑unit. Independent retrofit garages deploy this kit to add rear‑vision safety features without discarding the OEM multimedia assembly.

In addition, this kit includes vehicle‑specific Fakra, LVDS and power inline harnesses. You preserve the factory wiring loom throughout physical installation. After you complete hardware fitting, you must modify vehicle CCF parameters to unlock video‑input channels. Use our JET Pro JLR Engineering Tool for full‑module post‑installation scanning. Also review SDD & Pathfinder offline installation if your workshop still lacks suitable JLR diagnostic software.

Core technical functions of Unichip Harman head‑unit interface

• Reverse‑Gear Auto‑Trigger: Automatically switch the factory Harman infotainment screen to rear‑camera view right after you select reverse gear.
• Dynamic Parking‑Guideline Overlay: Output moving trajectory guide‑lines to support low‑speed parking and tight‑space vehicle manoeuvres.
• Multi‑Source Video Inputs: Accept rear‑camera signal, front HD‑camera feed, DVR recorder input and VGA‑HD 360‑degree panoramic camera video sources.
• LVDS & MOST‑bus Compatibility: Works with OEM Harman infotainment units on selected CAN‑bus and early‑DoIP JLR chassis; respects factory MOST‑bus audio‑network protocols.
• Plug‑and‑Play Inline Harness: Direct‑fit Fakra / LVDS and power loom connects inline with factory infotainment connectors; minimise wire‑splicing work.

Vehicle Compatibility & Pre‑Fitment Technical Rules

First, validate your exact head‑unit hardware revision before you place your order. This Unichip unit fits selected JLR vehicles equipped with genuine Harman‑manufactured infotainment systems. On the other hand, it will not operate with Bosch‑built units or revised Pivi‑Pro infotainment hardware. Moreover, send over your 17‑digit VIN if you require our pre‑sales compatibility check.

Furthermore, this listing supplies only main interface box plus dedicated wiring harness set. It does not include physical rear‑view camera hardware. Always disconnect vehicle 12‑volt battery before you start installation work. After fitment, edit CCF profiles to enable camera‑input functions. Then run full MOST‑bus and module scan to clear any newly triggered DTC faults.

Technician Installation Workflow Summary

After checkout, you receive physical hardware shipment. Next, a qualified technician removes the centre‑stack Harman head‑unit assembly. Meanwhile, the technician inserts the Unichip harness inline between factory LVDS, Fakra video and power connectors. Once you hook‑up all external RCA video sources, restore battery power and verify reverse‑gear automatic screen‑switch behaviour. After that, perform CCF configuration adjustments and complete module‑health checks with JLR diagnostic software.

Critical Technical Notes

This product provides Unichip main interface unit plus Harman‑specific plug‑and‑play harness set. It excludes rear‑camera assemblies, mounting brackets or factory infotainment spare parts. Poor harness routing can trigger MOST‑bus communication drop‑outs. For manufacturer‑reference documentation, open Land‑Rover’s official owner support portal (external link).

What You Receive On Purchase Completion

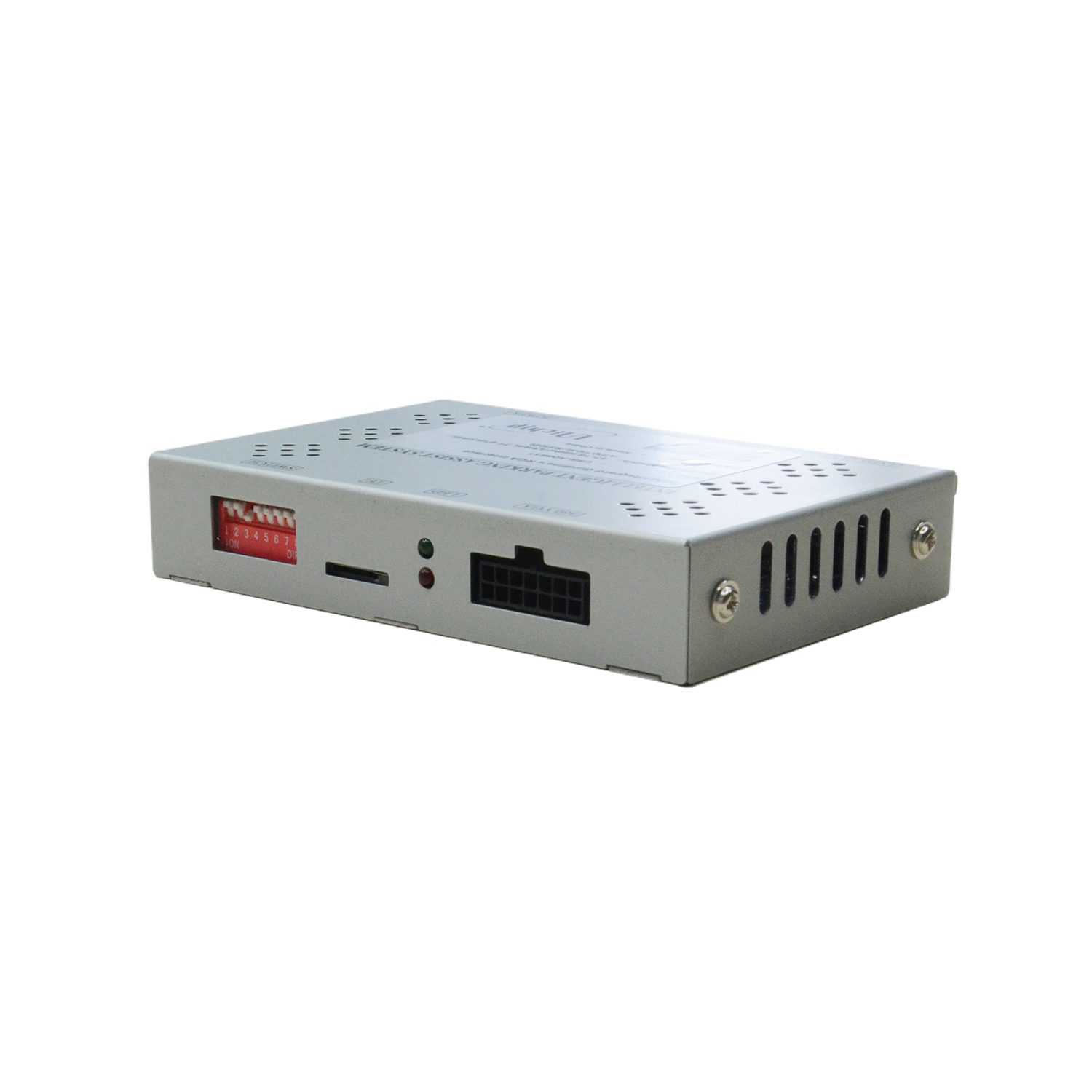

• Unichip OEM‑integrated backup‑camera main interface box for JLR Harman head‑unit
• Harman‑compatible inline LVDS, Fakra & power plug‑and‑play harness
• RCA input cables for rear‑cam, front‑cam, DVR and 360‑camera video feeds
• Printed installation manual with complete wiring‑pinout diagrams
• Digital post‑installation CCF‑edit and diagnostic‑verification checklist
