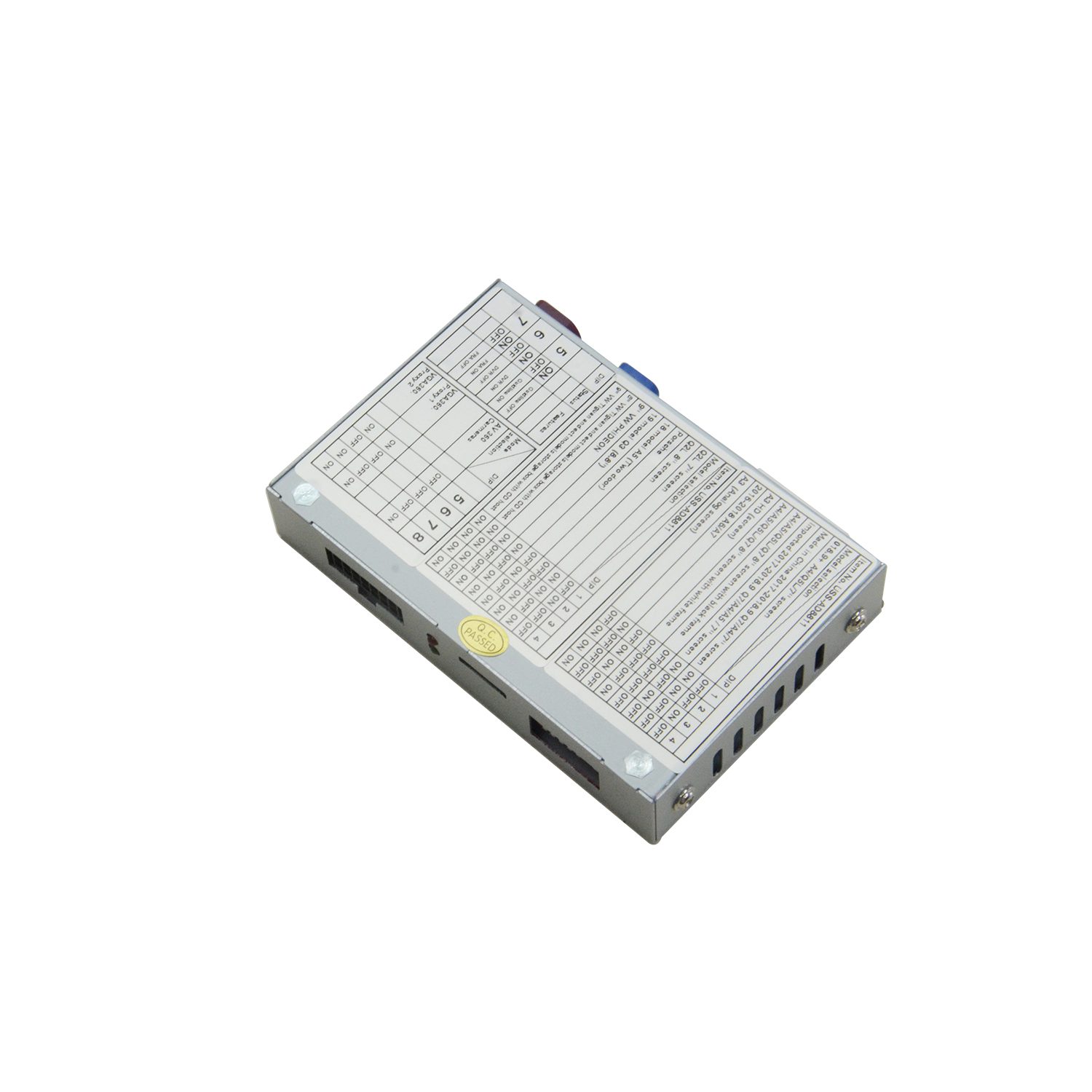

Unichip Backup Camera Interface OEM Integrated for JLR Old Land Rover and Discovery 3

Unichip Backup Camera Interface OEM Integrated for JLR Old Land‑Rover & Discovery 3 — Product Overview

This Unichip backup camera interface delivers OEM‑style reverse‑camera integration for classic JLR Discovery 3 (L319) and compatible older Land‑Rover platforms. First, many factory‑spec Discovery 3 units ship without native reversing‑camera support. Meanwhile, this plug‑and‑play video module feeds camera video straight into the original factory navigation screen. Independent workshops and retrofit specialists use this unit to add rear‑vision safety features without replacing the OEM head‑unit or display hardware.

In addition, the kit uses direct factory‑style harness connectors. You avoid cutting original vehicle wiring during installation. After physical fitting, you can run DTC checks with our JET Pro JLR Engineering Tool. Also review our 2‑in‑1 JLR CCF Tools if you need to adjust related body‑control‑module configuration values post‑installation.

Core technical functions of Unichip backup camera interface

• Automatic Reverse Trigger: Switches the factory display to rear‑camera view immediately once you select reverse gear.
• Parking‑Guideline Overlay: Draw dynamic trajectory track lines for safer low‑speed parking and manoeuvring.
• Multi‑Video‑Input Support: Accept rear‑camera input, front HD‑camera input, DVR recording unit input and VGA‑HD 360‑degree panoramic camera feeds.
• OEM Signal Compatibility: Works with original GVIF video signal architecture of Discovery 3 generation‑one navigation head‑units.
• Plug‑and‑Play Harness: Direct‑fit adapter loom connects to factory BDC / video plugs; minimal modification to vehicle wiring.

Vehicle Compatibility & Pre‑fitment Notes

First, confirm your vehicle chassis before ordering. This Unichip unit targets Discovery 3 L319 (2005‑2009) and matching older Land‑Rover models with generation‑one Bosch‑based OEM navigation systems. On the other hand, it will not work with later Discovery 4 or DoIP‑era JLR infotainment hardware. Moreover, you should verify your head‑unit hardware revision; send us your 17‑digit VIN if you require pre‑sales compatibility validation.

Furthermore, this is the video‑interface main‑box and wiring harness set. It does not include the physical rear‑view camera hardware. Always disconnect vehicle battery before you perform installation work. After fitment, run a full module scan to rule out new network DTC faults.

Installation Workflow Summary

After checkout, you receive the physical hardware shipment. Next, a qualified technician removes the factory head‑unit. Meanwhile, the technician plugs the Unichip harness inline between the original BDC board and factory video cables. Once all RCA video sources connect, power‑up and test reverse‑gear auto‑switching behaviour. After that, run diagnostic tool module health checks to confirm no MOST‑network communication errors exist.

Critical Technical Notes for Technicians

This product supplies the Unichip video‑interface box plus matching vehicle‑specific harness set. It excludes rear‑camera hardware, mounting brackets or OEM head‑unit replacement parts. Improper harness routing can trigger MOST‑bus communication failures. For manufacturer reference resources, open Land‑Rover’s official owner support portal (external link).

What you receive after purchase completion

• Unichip OEM‑integrated backup‑camera main interface box (USS‑LH8847)
• Discovery 3 dedicated plug‑and‑play inline wiring harness set
• RCA video input cables for rear‑cam, front‑cam, DVR and 360‑camera sources
• Printed installation instruction manual with wiring‑pinout diagrams
• Digital post‑fitment diagnostic‑verification checklist
