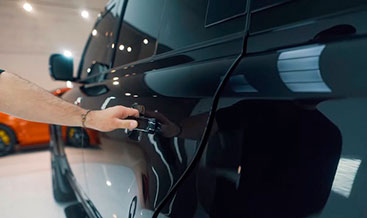

L663 Genuine Soft door close

Product Technical Overview

First, many base‑trim L663 vehicles roll off production with standard manual‑only door latches. Even if you install soft‑close latches and actuator hardware, the power‑latching feature will not activate fully. Instead, the vehicle will store persistent DTC faults within each DCM door‑control‑module and the main BCM body‑control‑unit. For instance, you may get central‑locking intermittent failures. You may also trigger latch‑actuator circuit fault codes like B1D44‑00. Therefore, this retrofit strictly follows official JLR TOPIX workshop standards. It uses genuine OEM soft‑close power‑latching latches for all four doors. It also includes updated DCM hardware and factory‑pin‑matched CAN‑door harness. In addition, it avoids irreversible door‑shell cutting during installation.

Next, full soft‑door‑close operation requires DoIP‑capable diagnostic hardware. Suitable tools include JLR Enet, JET Pro or Pathfinder software. After physical fitment, you must finish several critical diagnostic steps. To begin, edit CCF parameters to enable soft‑close door feature‑flag set for every door position. Then, run each DCM door‑module initialization service routine. Following that, complete door‑latch actuator stroke calibration for all four openings. Finally, clear all retrofit‑related DTC entries. As an option, JLR‑Decoder offers on‑site configuration support. We also provide worldwide remote VIN‑based activation service.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. Retains factory central‑locking and double‑lock functionality.
• Hardware Scope: Four‑door OEM soft‑close power‑latching latch assemblies, updated DCM door‑control‑modules, CAN‑door bus harness and internal mounting hardware.
• Mandatory Diagnostic Procedures: Enable soft‑close feature flags inside CCF for each door. Initialize every DCM door‑control‑module. Run latch‑actuator stroke calibration. Update BCM body‑domain network settings. Scan and erase all stored DTCs afterward.
• Enabled Factory Functions: Genuine soft‑close power‑latching for four doors. Gentle pull‑in once door reaches primary latch catch. Anti‑pinch actuator safety protection. Full integration with existing central‑lock and alarm systems.
• Electrical Interface: 12 V vehicle power supply. High‑speed CAN‑door bus communication. OEM sealed pin‑compatible connectors.
• Deliverables: OEM soft‑door‑close hardware kit. TOPIX‑aligned installation procedure. Access to TEC‑DOC door‑system interactive wiring diagrams.

JLR‑Compliant 3‑Stage Retrofit Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks your factory door‑system build status, existing harness provision and gateway‑module variant. As a result, you confirm full compatibility before you place your order. Some base‑trim vehicles need extra CAN‑door loom upgrades.
2. Physical Hardware Installation: Start by disconnecting the 12V battery following TOPIX safety guidance. Then remove each interior door‑card assembly. Swap standard latches for genuine soft‑close latch units. Fit updated DCM door‑control‑modules. Next, route and lock in the CAN‑door bus harness. Lastly, refit door cards and reconnect the vehicle battery.
3. DoIP Diagnostic Activation & Calibration: Connect your DoIP VCI interface. To start, edit CCF and activate soft‑door‑close feature parameters per door. After that, run DCM module initialization and latch‑actuator stroke calibration. Then update BCM body‑domain network configuration. Once finished, clear all retrofit‑generated DTCs. In the end, validate soft‑close pull‑in and anti‑pinch safety with TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

Pure software‑only activation cannot add soft‑close functionality to base‑latch vehicles. You must install genuine OEM soft‑close latches plus matching DCM modules. Once you finish the retrofit, run a complete module scan. Use our JLR‑Decoder DTC library to check for door‑system fault codes. If actuator stroke calibration fails, doors may not latch correctly or produce abnormal operating noise. Furthermore, this kit applies to four passenger doors. Tailgate soft‑close hardware is sold as a separate retrofit product.

What You Receive

Your order includes OEM‑grade Genuine Soft Door Close hardware set. It contains four soft‑close latch assemblies, updated DCM door‑control‑modules, CAN‑door bus harness and mounting fixtures. You also receive technical installation guidance plus access to relevant TEC‑DOC wiring resources. At checkout, you can select self‑configuration or our remote JLR diagnostic activation service. Meanwhile, workshop clients may add print tokens for licensed TOPIX service‑document exports.
