L663 Heated and Cooled front seats

Product Technical Overview

First, many L663 front‑seat assemblies only offer heating without active cooling functionality. Even if you install ventilation blowers and perforated seat foams, full climate functions will not activate. Instead, the vehicle will store persistent DTC faults inside DSM, PSM, BCM and Pivi Pro IMC modules. For instance, you will miss the cool‑seat toggle inside the climate touch‑screen menu. You may also trigger temperature‑sensor circuit fault codes like B1064‑31. Therefore, this retrofit strictly follows official JLR TOPIX workshop standards. It uses genuine OEM seat ventilation blowers and perforated cushion‑backrest inserts. It also includes upgraded DSM‑PSM control hardware and factory‑pin‑matched LIN‑bus harness. In addition, it avoids irreversible cutting of original seat frames during fitment.

Next, full heated‑and‑cooled‑seat operation requires DoIP‑capable diagnostic hardware. Suitable tools include JLR Enet, JET Pro or Pathfinder software. After physical fitment, you must complete several critical diagnostic steps. To begin, edit CCF parameters to enable combined heated‑cooled seat feature‑flags. Then, run DSM‑PSM module initialization service routine. Following that, execute seat thermal‑sensor calibration for both heat and ventilation channels. Finally, clear all retrofit‑related DTC entries. As an option, JLR‑Decoder offers on‑site configuration support. We also provide worldwide remote VIN‑based activation service.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. It requires pre‑existing power‑adjust front seat base hardware.
• Hardware Scope: Driver and passenger ventilation blower units, perforated seat cushion‑backrest inserts, upgraded DSM‑PSM seat modules, LIN‑bus seat harness and mounting fixtures.
• Mandatory Diagnostic Procedures: Enable heated‑cooled seat CCF feature flags. Initialize DSM‑PSM seat control modules. Run dual‑channel thermal‑sensor calibration. Update BCM‑IMC climate gateway settings. Scan and erase all stored DTCs afterward.

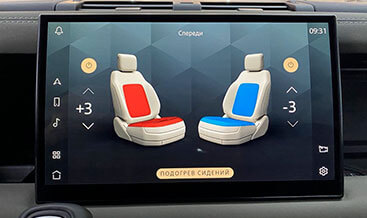

• Enabled Factory Functions: Multi‑level seat heating. Multi‑level active seat cooling ventilation. Pivi Pro climate‑menu heat‑cool toggle controls. Thermal over‑temperature safety cut‑off protection.
• Electrical Interface: 12 V vehicle power supply. LIN‑bus seat‑system communication. OEM sealed pin‑compatible connectors.
• Deliverables: OEM heated‑cooled seat hardware kit. TOPIX‑aligned installation procedure. Access to TEC‑DOC seating‑system interactive wiring diagrams.

JLR‑Compliant 3‑Stage Retrofit Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks your factory seat build status, existing harness provision and gateway‑module variant. As a result, you confirm full compatibility before you place your order. Some base‑trim vehicles need extra LIN‑bus loom upgrades.
2. Physical Hardware Installation: Start by disconnecting the 12V battery following TOPIX safety guidance. Then remove front‑seat assemblies and seat upholstery. Fit ventilation blowers, perforated inserts and upgraded DSM‑PSM modules. Next, route and lock in the LIN‑bus seat harness. Lastly, refit upholstery, reinstall seats and reconnect vehicle battery.
3. DoIP Diagnostic Activation & Calibration: Connect your DoIP VCI interface. To start, edit CCF and activate heated‑cooled‑front‑seat feature parameters. After that, run DSM‑PSM initialization and dual‑channel thermal‑sensor calibration. Then update BCM‑IMC climate gateway configuration. Once finished, clear all retrofit‑generated DTCs. In the end, verify heat‑cool toggle controls with TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

Pure software‑only activation cannot add cooling function to standard heated‑only seats. You must install physical ventilation blowers and upgraded DSM‑PSM modules. Once you finish the retrofit, run a complete module scan. Use our JLR‑Decoder DTC library to check for seating‑system fault codes. If thermal‑sensor calibration fails, over‑temperature protection will disable seat cooling. Furthermore, this kit applies to front seats only. Rear heated‑cooled seat hardware is sold as a separate product.

What You Receive

Your order includes OEM‑grade Heated and Cooled Front Seats hardware set. It contains ventilation blower pair, perforated seat inserts, DSM‑PSM control modules, LIN‑bus harness and mounting fixtures. You also receive technical installation guidance plus access to relevant TEC‑DOC wiring resources. At checkout, you can select self‑configuration or our remote JLR diagnostic activation service. Meanwhile, workshop clients may add print tokens for licensed TOPIX service‑document exports.
