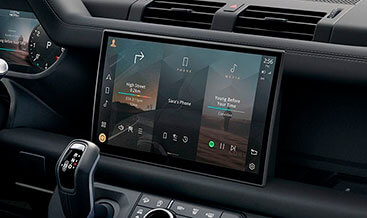

L663 Large 11.4″ PiVi Pro Touchscreen

Product Technical Overview

First, many base‑spec L663 vehicles come fitted with the smaller standard‑size Pivi Pro display. Even if you physically swap in the larger 11.4‑inch screen hardware, infotainment functions will not work correctly. Instead, the vehicle will store persistent DTC faults inside the IMC infotainment master controller, gateway and connected body modules. For instance, you may see distorted UI scaling or missing menu panels. You may also trigger IMC communication fault codes like B115E‑31. Therefore, this retrofit strictly follows official JLR TOPIX workshop standards. It uses genuine OEM 11.4‑inch touch‑screen unit and compatible dashboard bezel trim. It also includes dedicated LVDS high‑speed video harness and factory‑pin‑matched sealed connectors. In addition, it avoids irreversible dashboard shell cutting during installation.

Next, full large‑display Pivi Pro functionality requires DoIP‑capable diagnostic hardware. Suitable tools include JLR Enet, JET Pro or Pathfinder software. After physical fitment, you must finish several critical diagnostic steps. To begin, edit CCF parameters to enable the large‑display feature‑flag set. Then, run IMC module adaptation and VIN alignment service routine. Following that, execute gateway network‑learning for LVDS‑CAN bus synchronisation. Finally, clear all retrofit‑related DTC entries. As an option, JLR‑Decoder offers on‑site configuration support. We also provide worldwide remote VIN‑based activation service.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. It requires existing functional Pivi Pro IMC base hardware.
• Hardware Scope: OEM 11.4‑inch Pivi Pro touch‑screen assembly, matching dash bezel trim, LVDS video‑signal harness and mounting retention fixtures.
• Mandatory Diagnostic Procedures: Enable large‑display CCF feature flags. Execute IMC module adaptation and VIN matching. Run gateway network‑learning routine for bus sync. Scan and erase all stored DTCs afterward.
• Enabled Factory Functions: Native 11.4‑inch scaled Pivi Pro user interface. Full‑screen navigation view. CarPlay / Android Auto optimised layout. Retains all original vehicle infotainment and climate control functions.
• Electrical Interface: 12 V vehicle power supply. High‑speed LVDS video plus CAN‑Ethernet communication. OEM sealed pin‑compatible connectors.
• Deliverables: OEM large‑screen hardware kit. TOPIX‑aligned installation procedure. Access to TEC‑DOC infotainment‑system interactive wiring diagrams.

JLR‑Compliant 3‑Stage Retrofit Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks your factory infotainment build, existing LVDS harness provision and gateway‑module variant. As a result, you confirm full compatibility before you place your order. Some early base‑trim vehicles need extra LVDS loom upgrades.
2. Physical Hardware Installation: Start by disconnecting the 12V battery following TOPIX safety guidance. Then remove dashboard upper trim and original small‑size Pivi Pro unit. Fit the 11.4‑inch touch‑screen assembly and matching bezel. Next, route and lock in the LVDS video‑signal harness. Lastly, reassemble dash trim panels and reconnect vehicle battery.
3. DoIP Diagnostic Activation & Calibration: Connect your DoIP VCI interface. To start, edit CCF and activate 11.4‑inch large‑display feature parameters. After that, run IMC adaptation and VIN‑matching service routine. Then execute gateway network‑learning for bus synchronisation. Once finished, clear all retrofit‑generated DTCs. In the end, verify UI scaling and all infotainment features via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

Pure software‑only activation cannot upgrade screen size on smaller‑display vehicles. You must install physical 11.4‑inch touch‑screen hardware plus valid LVDS harness. Once you finish the retrofit, run a complete module scan. Use our JLR‑Decoder DTC library to check for infotainment‑system fault codes. If IMC adaptation fails, user‑interface graphics will render incorrectly. Furthermore, this kit upgrades the physical touch‑display only. It does not add extra Pivi Pro software licences such as Connected Navigation Pro.

What You Receive

Your order includes OEM‑grade Large 11.4″ Pivi Pro Touchscreen hardware set. It contains 11.4‑inch touch‑screen unit, dashboard bezel trim, LVDS video harness and mounting fixtures. You also receive technical installation guidance plus access to relevant TEC‑DOC wiring resources. At checkout, you can select self‑configuration or our remote JLR diagnostic activation service. Meanwhile, workshop clients may add print tokens for licensed TOPIX service‑document exports.
