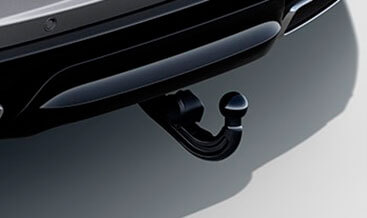

L461 Electrically deployable tow bar

Product Overview

The L461 Electrically deployable tow‑bar kit (VPLXEDT01EU) is OEM factory‑engineered towing hardware for non‑SV Range Rover Sport L461 DOIP‑chassis vehicles across model‑years 2023‑2027 and NAS, EU, CN and RoW markets. Furthermore, this complete retrofit supplies a motor‑driven retractable tow‑ball assembly, dedicated TBM tow‑bar control‑module, 13‑pin trailer wiring harness and bumper finishing components. When you do not use the tow ball, the unit stows invisibly behind the rear bumper to preserve factory exterior styling. However, this DOIP accessory needs more than mechanical installation; it requires CCF feature‑flag activation, module commissioning and Trailer Stability Assist enablement through Pathfinder or CCF‑Tools 4.8 while you follow TOPIX fitting procedure reference G3140440. If technicians skip commissioning steps, they trigger DTC fault‑codes and disable trailer‑related chassis safety functions. Consequently, specialist body and towing workshops and competent DIY technicians with DOIP‑capable diagnostic hardware should complete this installation. Importantly, this kit will not fit SV‑spec L461 variants.

JLR Technical Specifications & Core Features

• Motor‑Deployable Tow‑Ball: An electric actuator handles stow / deploy cycles. You control it from the loadspace switch or Pivi‑Pro infotainment menu, and the tow‑ball stays fully concealed behind the bumper once retracted.
• Towing Capacity: The system supports a max 3500 kg gross trailer mass; PHEV powertrains limit this rating to 3000 kg, while maximum nose‑load reaches 195 kg (market‑dependent).
• TBM Control‑Module & 13‑Pin Electrics: The OEM Tow‑Bar Module manages motor position, trailer‑light outputs and a built‑in trailer‑light self‑test diagnostic function.
• Trailer Stability Assist (TSA): You enable this CCF‑activated chassis safety function. It uses the ESC system to reduce dangerous trailer‑sway events while towing.
• DOIP Integration: The TBM communicates with the RBM rear‑body module, ABS‑ESC gateway and Pivi‑Pro to share status feedback and report faults.
• Reversible Retrofit: Technicians can remove hardware and restore CCF values, so you revert the vehicle back to factory non‑tow‑bar configuration.

Vehicle Prerequisites & Technical Constraints (JLR Workshop Standard)

Hard prerequisites apply before you order. First, the vehicle must be a non‑SV variant. Additionally, installers must perform controlled cutting and modification to the rear bumper per TOPIX drawings. Since PHEV models carry reduced maximum trailer‑load ratings, check powertrain specs carefully. Run JLR‑Decoder VIN‑decode before ordering, as this check confirms bumper type and powertrain build‑options. After technicians finish mechanical assembly, TBM module fitment and harness routing, they write updated CCF data, run the TBM commissioning routine and perform gateway / RBM module resets. Unless you complete this programming step, DTC C1D20‑87 (Tow‑bar configuration mismatch) appears and Trailer Stability Assist stays offline. Maintain a stable 13.2 V battery support‑unit while you run CCF‑write and diagnostic routines. Finally, after fitment completes, run physical deploy‑cycle tests, trailer‑light function checks and a full DTC scan using our JLR‑Decoder DTC‑Library to clear non‑permanent fault entries.

Kit Contents

• Motor‑driven deployable tow‑ball main assembly (VPLXT0333)
• TBM Tow‑Bar Control‑Module (VPLKT0318)
• L461‑specific 13‑pin towing wiring harness (LR173054)
• Rear bumper aperture finisher cover, mounting brackets and full OEM fastener set
• Loadspace operating switch assembly
• Printed documentation referencing TOPIX fitting procedure G3140440

Ordering Information

Once you complete purchase, we supply TOPIX‑aligned fitting and commissioning documentation, target CCF‑parameter reference tables, module reset workflows and DTC troubleshooting guidance. This listing sells physical OEM hardware only; DOIP diagnostic hardware and Pathfinder / CCF‑Tools software ship separately. Submit your 17‑digit VIN during checkout, and our team runs pre‑sales variant‑compatibility screening. We issue a full‑order refund when your vehicle is SV‑spec or otherwise incompatible with this tow‑bar kit.
