T4 Mobile Plus Diagnostic System for Land Rover 1998-2009

T4 Mobile Plus Diagnostic System for Land Rover 1998‑2009 — Product Overview

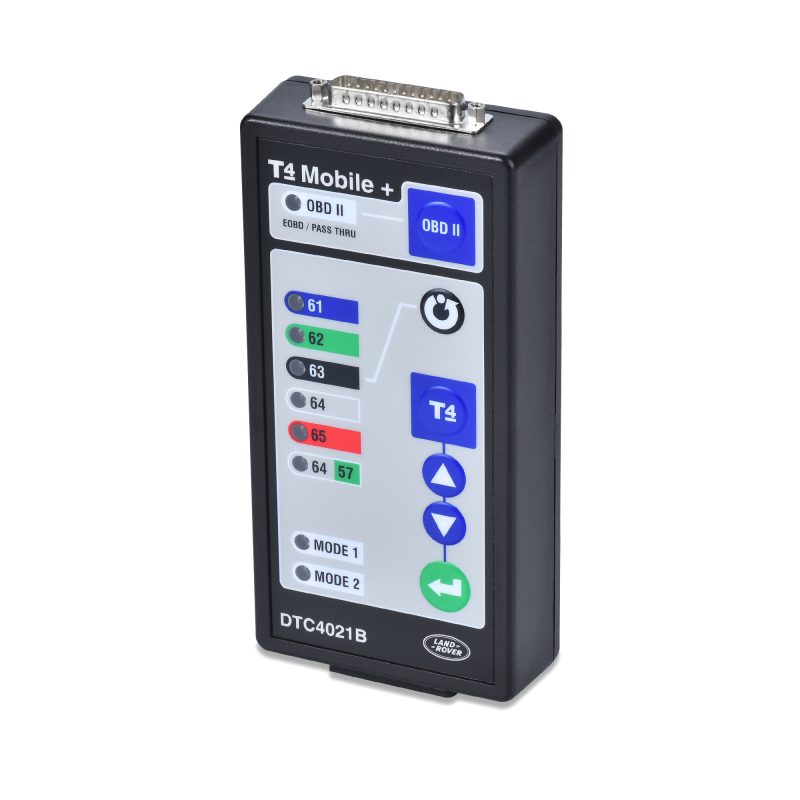

This T4 Mobile Plus diagnostic system is professional Omitec‑origin legacy workshop communication hardware built for classic Land‑Rover 1998‑2009 model‑year platforms. First, older pre‑2010 Land‑Rover chassis utilise mixed J1850 PWM, VPW, ISO9141‑K‑line and early CAN‑bus networks. Meanwhile, its built‑in Intelligent Connector System (ICS) eliminates frequent manual cable swapping between different legacy vehicle protocols. Independent garages specialising in classic Land‑Rover repair rely on this unit for full‑system diagnostics, component actuation and ECU programming without older fixed T4 bench‑setup restrictions.

In addition, this hardware implements J2534 pass‑thru specification and draws power from vehicle 8‑16V supply for flexible bay‑side or controlled road‑test diagnostics. It works alongside legacy T4 diagnostic applications and early SDD releases. Review our SDD & Pathfinder offline software if you require matching PC diagnostic software for mixed‑fleet workshop work.

Core technical capabilities of T4 Mobile Plus hardware

• Multi‑Protocol Intelligent Connector System: Native hardware support for J1850 PWM/VPW, ISO9141 K‑Line and early CAN‑bus; one‑button protocol switching removes manual cable changes.
• Full J2534 Pass‑Thru Compliance: Operate with T4, legacy SDD and compatible third‑party J2534 diagnostic software over USB‑1.1 host connection.
• Complete Diagnostic Workflows: Read / clear DTCs, stream live sensor data, run bi‑directional component actuation and execute ECU flash / module configuration routines.
• Road‑Test Ready: Powered by vehicle OBD port, supports in‑vehicle controlled road testing for intermittent fault diagnosis (passenger‑operated only).
• Legacy Cable Backwards‑Compatibility: Supports existing T4‑series adapter cables DTC0061‑DTC0065 for very early non‑J1962 vehicle connectors.

Vehicle & Workstation Compatibility Details

First, confirm target vehicle model‑year before ordering. T4 Mobile Plus is optimised for Land‑Rover MY1998‑2009 including Range‑Rover L322, Discovery 2, Discovery 3 L319, Freelander and Range‑Rover Sport L320. On the other hand, it is not designed for post‑2010 high‑speed DoIP vehicles, which require modern DoIP‑capable VCI hardware. Moreover, host PC requires Windows XP / Windows 10 32‑bit environment for stable legacy driver operation.

Furthermore, this listing supplies physical T4 Mobile Plus main hardware unit plus main OBD‑J1962 cable. Diagnostic software, additional legacy adapter cables and printed workshop manuals are sold separately. Always maintain stable vehicle battery voltage during ECU reprogramming sessions to prevent module bricking.

Workshop Hardware Setup Workflow Summary

After checkout you receive physical T4 Mobile Plus unit and primary OBD‑16 cable. Next, install supplied J2534 USB drivers onto your 32‑bit Windows workstation. Meanwhile, connect hardware to vehicle OBD‑II port and USB‑host. Select correct vehicle profile within your T4 / SDD software suite. Once protocol auto‑negotiation completes, run module identification and begin diagnostic or programming tasks. After completing work, clear residual DTC codes and perform module health verification.

Critical Technical Notes for Technicians

This product provides only T4 Mobile Plus communication hardware. It does not include diagnostic software licences or additional legacy adapter cables. Road‑test diagnosis must only be operated by a passenger, never by the vehicle driver. Incorrect ECU flashing may permanently damage control modules. For manufacturer‑reference resources, open Land‑Rover’s official owner support portal (external link).

What You Receive On Purchase Completion

• T4 Mobile Plus main Omitec‑spec diagnostic communication hardware unit
• Primary J1962 OBD‑16 vehicle connection cable
• USB host communication cable for Windows workstation connection
• Digital package containing J2534 driver files and hardware operation manual
• PDF pre‑programming battery‑voltage and connection validation checklist
