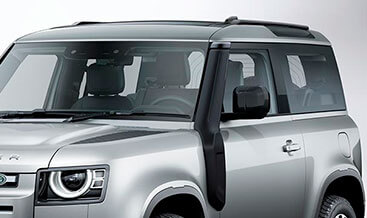

L663 Raised Air Intake

Product Technical Overview

First, many L663 Defender units leave the factory without the raised air‑intake off‑road option. Even so, this is a purely mechanical exterior off‑road accessory. Instead, incorrect torque sequencing or poor sealing work will create water‑ingress risks. For instance, you may get dust or moisture entering the engine air‑box. You may also hear excessive wind noise at highway cruising speeds. Therefore, this product strictly follows official JLR TOPIX accessory fitting documentation for part number VPLEP0543. It uses high‑impact UV‑resistant anthracite‑coloured polymer construction. It also includes template guides, rivet nuts and torque‑rated fasteners. In addition, it requires controlled A‑pillar panel hole drilling per JLR dimensional templates during installation.

Next, the Raised Air Intake has no dependency on vehicle ECUs. Suitable workshop reference materials include TEC‑DOC and TOPIX accessory installation manuals. After physical fitment, no mandatory CCF edits or DoIP module programming are needed. To begin, confirm vehicle variant exclusion rules for V8 and OCTA trims. Then, prepare body panels and strictly follow drilling‑template positioning. Following that, complete mechanical assembly per JLR step‑by‑step torque‑sequence procedures. Finally, perform sealing inspection and road‑noise validation checks. As an option, JLR‑Decoder offers supporting technical documentation access. We do not require VIN‑based remote activation for this mechanical‑only part.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. Not compatible with V8 or OCTA powertrain trims.
• Hardware Scope: OEM VPLEP0543 raised air‑intake main body, intake cap, drilling template, rivet nuts, M6 torque‑rated fasteners and sealing accessories.
• Mandatory Fitment Procedures: Confirm non‑V8 / non‑OCTA eligibility. Use supplied JLR drilling template for A‑pillar cut‑out. Apply defined torque values in correct tightening sequence. Validate joint sealing and air‑path integrity afterward.
• Enabled Factory Functions: Elevated air‑intake position for dusty, sandy off‑road environments. Reduced filter contamination from road‑level dust. OEM‑matched anthracite exterior finish. Important note: does NOT increase factory rated wading depth (max 900 mm).
• Mechanical Requirements: Requires precision A‑pillar drilling per template. Correct joint sealing is critical to prevent dust or water ingress into the air‑box.
• Deliverables: OEM Raised Air Intake hardware set. TOPIX‑aligned accessory fitting procedure. Access to TEC‑DOC exterior‑system reference documentation.

JLR‑Compliant 3‑Stage Fitment Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks factory powertrain and trim variant data. As a result, you confirm full compatibility before you place your order. V8‑equipped or OCTA‑trim vehicles cannot use this OEM raised‑air‑intake kit.
2. Pre‑Fit Hardware & Panel Preparation: Start by examining A‑pillar body structure following TOPIX accessory safety guidance. Then apply the official drilling template to mark cut‑out positions. Inspect surrounding bodywork for prior damage or corrosion. Resolve any panel defects before drilling operations begin.
3. Mechanical Fitment & Validation: Prepare clean A‑pillar mounting surfaces. To start, complete controlled template‑guided panel drilling and fit supplied rivet nuts. After that, position main intake assembly and torque fasteners strictly per JLR‑defined tightening‑sequence values. Then fit intake cap and inspect all sealing joints. Once finished, perform visual seal inspection. In the end, carry out road‑test for wind‑noise and air‑path integrity via TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

No CCF coding or DoIP diagnostic programming is needed for this off‑road accessory. You must strictly adhere to JLR drilling templates and torque sequences. Once you finish fitment, periodically inspect all sealing joints after heavy off‑road use. Use our JLR‑Decoder documentation resources for template and torque‑value reference. If sealing joints fail, dust or water may enter the engine air‑box. Furthermore, this product supplies only the OEM raised‑air‑intake snorkel kit. It does not extend factory wading capability and does not include engine air‑filter elements.

What You Receive

Your order includes OEM‑grade L663 Raised Air Intake hardware set. It contains VPLEP0543 main intake body, intake cap, drilling template, rivet nuts and torque‑rated fastener parts. You also receive technical fitting guidance plus access to relevant TEC‑DOC exterior‑system resources. At checkout, you only select physical‑hardware purchase. Meanwhile, workshop clients may add print tokens for licensed TOPIX accessory‑fitment document exports.
