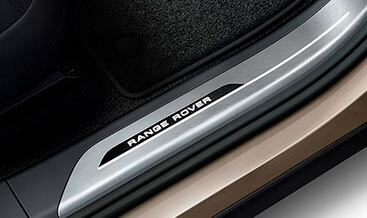

L461 Illuminated metal treadplates with Range Rover script

Product Overview

The L461 Illuminated Metal Treadplates with Range Rover Script (VPLWS0209) is a premium OEM interior styling‑and‑protection accessory built for Range Rover Sport L461 DOIP‑chassis vehicles across 2023‑2027 model‑years for NAS, EU, CN and RoW global markets. This full‑vehicle set replaces the standard plastic sill‑trim assemblies with durable brushed‑metal plates, fitted with integrated low‑draw white LED elements. The etched Range‑Rover script illuminates automatically whenever a vehicle door is opened. After mechanical hardware installation, DOIP‑platform vehicles require CCF configuration changes to activate the LED illumination logic within the Body‑Control‑Module (GWM). Without correct CCF enablement the LED lighting will remain inactive and DTC entries may log in body‑control modules. This retrofit is intended for independent garages, interior‑retrofit specialists and competent DIY technicians with DOIP‑capable diagnostic hardware.

JLR Technical Specifications & Core Features

• Full‑Vehicle Sill‑Set: Front and rear four‑door brushed stainless‑steel treadplates featuring etched Range‑Rover script branding.
• Door‑Triggered LED Illumination: Low‑power white LED lighting activates upon door‑ajar signal from door‑control‑modules; dims and extinguishes on door‑closed event.
• Durable OEM‑Grade Metal Finish: Scratch‑resistant brushed‑metal surface protects factory sill trim from shoe‑scuffs and ingress debris.
• Dedicated OEM Wiring Loom: Platform‑specific harness interfaces to existing door‑module power‑and‑ground circuits; no destructive splicing of original vehicle wiring permitted per TOPIX guidelines.
• Module‑Managed Power Logic: GWM body‑controller handles LED timing, sleep‑mode and quiescent‑current limits to preserve 12‑volt‑battery state‑of‑charge.
• Reversible Fitment: Can revert back to factory standard sill‑trim by restoring original hardware and original‑backup CCF file.

Installation & Compatibility Notes (JLR TOPIX Workshop Standard)

Physical installation must follow TOPIX accessory fitting documentation reference section 501‑08 covering sill‑trim removal and replacement. Original factory sill‑trim panels are removed and replaced with this kit’s metal treadplate assemblies; dedicated wiring loom connects to door‑control‑module connectors. Post‑mechanical‑fitment you must set the corresponding illuminated‑treadplate enable‑flags within CCF dataset by means of Pathfinder or CCF‑Tools 4.8. After writing updated CCF you need to execute resets for GWM gateway‑module plus each of the four door‑control‑modules. Skipping configuration‑and‑reset steps will trigger DTC fault‑code B1C64‑87 (illuminated sill configuration mismatch) and LED illumination will not function. Maintain stable 13.2 V supply voltage via battery‑support‑unit for all CCF‑write‑operations. Always run JLR‑Decoder VIN‑decode to check interior‑trim‑variant compatibility prior to ordering. Post‑installation complete functional door‑open‑close illumination test and run full DTC scan within our JLR‑Decoder DTC‑Library to clear non‑permanent fault‑entries.

Kit Contents

• Front‑left & front‑right illuminated metal treadplates with Range‑Rover script
• Rear‑left & rear‑right illuminated metal treadplates with Range‑Rover script
• L461‑specific OEM LED wiring‑harness assembly with sealed connectors
• Replacement trim clips, fastener set for sill‑mounting
• Printed fitting‑instructions referencing TOPIX 501‑08 workshop documentation

Ordering Information

Upon purchase you will receive TOPIX‑aligned step‑by‑step fitting‑and‑coding workflow documentation, target CCF‑parameter reference table, module‑reset‑sequence instructions plus DTC troubleshooting guidance. Submit your 17‑digit VIN during checkout for pre‑sales variant‑compatibility screening. This listing provides physical accessory‑kit plus documentation; DOIP diagnostic‑hardware and Pathfinder / CCF‑Tools software sold separately. Full‑order refund applies should your vehicle trim‑variant prove incompatible.
