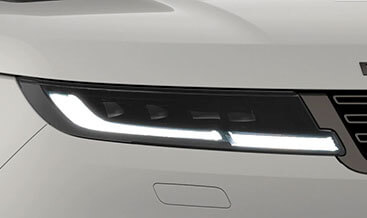

Pixel headlights

Pixel Headlights — JLR CCF & HLCM Configuration Activation

Pixel headlights unlock full‑feature Pixel‑LED adaptive‑driving‑beam functions by modifying Car‑Configuration‑File and Headlamp Control‑Module (HLCM) parameters. In fact, many L460 Range Rover and L461 Range Rover Sport vehicles are retro‑fitted with genuine Pixel‑LED lamp hardware. Furthermore, the vehicle still runs Premium‑LED configuration flags from factory build‑spec. Our remote VIN‑based coding registers the Pixel‑LED hardware across DOIP vehicle networks, without replacing any physical lighting components.

Stock mis‑configured vehicles only operate in limited Premium‑LED lamp mode, even with Pixel‑LED assemblies fitted. However, after completing our coding service, segmented high‑beam masking, dynamic bend lighting and traffic‑object shadowing become fully operational. In addition, the system cooperates with forward‑facing camera, steering‑angle sensor and vehicle speed signals. If you require OEM workshop reference documents for exterior lighting systems, view our JLR Membership 3‑Month subscription.

Core Technical Functions for Pixel headlights

• Original Configuration Backup: First, we read and archive factory CCF and HLCM configuration values. Next, this backup supports full roll‑back to original factory state whenever needed.
• Pixel‑LED Hardware Registration: Besides that, update CCF lamp‑type flags to register genuine Pixel‑LED assemblies within the vehicle gateway network.
• Adaptive Driving Beam (ADB): Activate pixel‑level selective dimming, to shadow oncoming or preceding vehicles and avoid glare for other road‑users.
• Dynamic Bend Lighting: Importantly, enable steering‑linked corner‑illumination, adjusting beam pattern according to vehicle speed and steering‑wheel position.
• Infotainment & body‑system sync: Synchronise HLCM, BCM and camera‑assist modules to clear lighting‑related DTC fault‑codes after configuration write.
• Software‑only modification: No headlamp hardware swap‑out, no wiring‑harness alterations. Full Pixel‑LED physical hardware must already be installed on‑vehicle before ordering.

Vehicle Eligibility & Mandatory Hardware Pre‑Conditions

This Pixel‑headlights activation applies to DOIP‑based L460 Range Rover and L461 Range Rover Sport chassis. Meanwhile, the vehicle needs fully‑fitted genuine Pixel‑LED headlamp assemblies, compatible HLCM controller and operational forward multi‑function camera. Moreover, matching Pivi‑Pro infotainment and vehicle firmware versions are required for stable lighting‑system operation. For official OEM background on JLR Pixel‑LED lighting systems, visit the official Jaguar Land Rover global website.

Who Should Purchase Pixel headlights

This remote coding service fits independent JLR retrofit specialists and owners of L460 / L461 vehicles with Pixel‑LED lamps retro‑fitted. Lastly, it suits vehicles suffering limited‑function lighting after head‑lamp hardware upgrade. Please note, this is VIN‑locked remote‑software‑activation service only. It does not supply Pixel‑LED lamp assemblies or on‑site vehicle programming. For extra JLR exterior‑feature activations, browse our JLR Feature Activations category page.

Activation & Service Terms

Submit your vehicle’s 17‑digit VIN right after checkout. On the other hand, our team pre‑validates hardware‑compatibility before generating modified configuration files. Processed configuration files plus step‑by‑step programming instructions get delivered by email. This is a permanent vehicle‑specific VIN‑locked configuration change and remains fully reversible using your original backup file.
