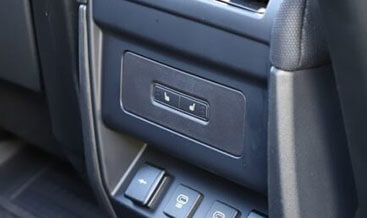

L663 Rear heated seats

Product Technical Overview

First, many L663 second‑row seats leave the factory without built‑in heating hardware. Even if you add heating pads alone, the system will not work correctly. Instead, it will log persistent DTC faults. These faults store inside the RSM, BCM and Pivi Pro ICCM modules. For example, you may lose rear heat control tiles on the touchscreen. You may also see over‑temperature alerts or the U1121‑00 communication fault code. Therefore, this retrofit follows strict JLR TOPIX workshop standards. It uses OEM cushion and backrest heating elements. It also uses a dedicated RSM control unit and factory pin‑matched LIN‑bus harness. In addition, it avoids permanent cuts to seat foam or upholstery during installation.

Next, full rear heated seat functions rely on DoIP diagnostic hardware. Suitable tools include JLR Enet, JET Pro or Pathfinder software. After physical fitment, you must complete several mandatory steps. To begin, edit CCF parameters to unlock the rear heat feature flag. Then, run the RSM service routine for module initialization. Following that, carry out thermal sensor calibration. Finally, clear all related DTCs. As an option, JLR‑Decoder offers on‑site configuration support. We also provide worldwide remote VIN‑based activation service.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure gateway. Supports LHD and RHD variants. It requires complete factory second‑row seat assemblies.
• Hardware Scope: Left and right rear cushion plus backrest heating pads. It includes an RSM rear seat control module, LIN‑bus harness, mounts and thermal sensors.
• Mandatory Diagnostic Procedures: Enable the rear heat CCF flag. Initialize the RSM module. Calibrate thermal sensors. Update BCM and ICCM gateway settings. Scan and erase all DTCs afterward.
• Enabled Factory Functions: Two‑level high/low rear seat heating. Pivi Pro climate menu touch tiles. Thermostatic temperature control. Ignition linked power management.
• Electrical Interface: 12V vehicle power supply. LIN‑bus seat system communication. OEM sealed, pin‑compatible connectors.
• Deliverables: OEM rear heating hardware set. TOPIX aligned installation guide. Access to TEC‑DOC seat wiring diagrams.

JLR‑Compliant 3‑Stage Retrofit Workflow

1. VIN Pre‑Validation: First, send your 17‑digit VIN to our VIN‑Decoder tool. This step checks your factory seat build, existing harness and gateway variant. As a result, you confirm compatibility before placing your order. Some base trim cars need extra loom upgrades.
2. Physical Hardware Installation: Start by removing second‑row seats and upholstery. Follow TOPIX service instructions closely. Then fit cushion and backrest heating pads. Mount the RSM module under the rear seats. Next, route and secure the LIN‑bus harness. Lastly, confirm every connector locks into place.
3. DoIP Diagnostic Activation & Calibration: Connect your DoIP VCI interface. To start, edit the CCF and activate rear heated seat parameters. After that, run RSM initialization and thermal sensor calibration. Then update BCM and ICCM gateway settings. Once finished, clear all retrofit DTCs. In the end, test touchscreen controls and heat levels with TEC‑DOC functional procedures.

Important Technical Notes & Limitations

Software activation alone cannot enable rear heating. You must fit physical heating pads and a working RSM module. Once you finish the retrofit, run a full module scan. Use our JLR‑Decoder DTC library to check for seat system faults. If thermal sensor calibration fails, the overheat protection will shut heating down. Furthermore, this kit covers outboard second‑row seats only. For seven‑seat L663 models, third‑row heating hardware sells separately.

What You Receive

Your order contains OEM‑grade rear heated seat hardware. It includes dual heating pads, the RSM control module, LIN‑bus harness and mounting parts. You also receive technical installation guidance and TEC‑DOC wiring access. At checkout, you can choose self‑configuration or our remote JLR activation service. Meanwhile, workshop users may add print tokens for TOPIX service documents.
