L663 Meridian™ Sound System 400W

L663 Defender Meridian™ Sound System 400W Activation

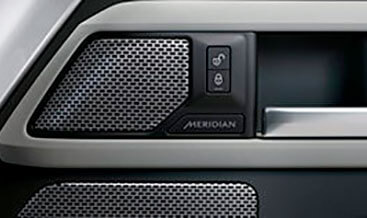

Our L663 Defender Meridian 400W sound system activation delivers dedicated CCF configuration for Land Rover Defender L663 (2020‑2026). First, the genuine Meridian™ 400W system delivers balanced high‑fidelity audio. It uses a dedicated amplifier, ten matched speakers plus integrated subwoofer. As a result, occupants get improved bass response and refined sound staging over base factory audio. Many L663 vehicles receive this complete Meridian hardware from factory or aftermarket retrofit. Even so, the audio profile stays disabled inside the Central Configuration File due to trim‑level build rules. Our service enables Meridian 400W feature‑bits over DOIP diagnostic protocol. Note we do not supply physical amplifiers, speakers or wiring parts. Before you buy, check your VIN and audio hardware part numbers. You can use our free JLR VIN Decoder.

Vehicle & Hardware Eligibility For L663 Meridian 400W Coding

• Use this service for Land Rover Defender L663, MY2020‑2026. It needs the full genuine Meridian™ 400W hardware kit. This includes dedicated audio amplifier, 10‑speaker set and matching subwoofer assembly.
• This CCF edit cannot add missing audio hardware. So you must finish all speaker and amplifier wiring connections first. Pivi‑Pro infotainment and audio modules must show zero related DTC faults before programming.
• You need authenticated DOIP‑capable VCI hardware. For example, our JET‑Pro Engineering Tool works perfectly. Pair it with Pathfinder V374 or newer software. Generic ENET cables cannot bypass the L663 secure gateway.
• The service supports NAS, EU, UK and RoW market vehicles. Still, regional infotainment build constraints can apply to some VIN records.
• Keep this key note in mind: this service only unlocks software‑locked audio profiles. After coding, you still run audio system validation. Follow JLR TOPIx workshop procedures strictly for this step.

Audio Functions Enabled After CCF Parameter Update

Once you apply our VIN‑specific CCF change‑set, trigger soft‑resets for Pivi‑Pro infotainment and audio‑amplifier modules. Next, the Meridian 400W audio profile loads inside the Pivi‑Pro head‑unit. First, it activates the dedicated amplifier output channels for all ten speakers. Second, it enables factory‑tuned equaliser, bass management and subwoofer crossover settings. As a result, you gain full Meridian‑calibrated sound performance. The infotainment menu will show correct Meridian audio preset options. You can adjust tone, balance and fade controls normally. If you need extra infotainment configuration jobs, browse our CCF Tools category.

Technical Workflow To Complete Meridian 400W Activation

1. First, finish checkout and submit your full 17‑digit JLR VIN. Also confirm you have fully fitted the complete Meridian™ 400W amplifier, speakers and subwoofer hardware.
2. Then our technical team reviews your factory build records. We verify amplifier and speaker assembly part numbers. After that, we generate a VIN‑locked CCF file that enables Meridian 400W audio feature‑bits.
3. Next, connect your authenticated DOIP VCI unit. Hold battery voltage stable above 12.6 V. Open and authenticate your Pathfinder session against the vehicle secure gateway.
4. Finally, import the custom CCF dataset. Run multi‑module soft‑resets. Clear historic audio‑related DTCs. Then test every speaker channel, equaliser presets and subwoofer output hands‑on.

Mandatory Pre‑Conditions Before Placing Your Order

• Clear all related active DTCs ahead of time. Check Pivi‑Pro infotainment, audio amplifier module and vehicle secure gateway.
• Maintain stable battery power through the whole coding session. Voltage drops will corrupt CCF writes or force infotainment modules into sleep state.
• Prepare these items on‑site: authenticated DOIP diagnostic hardware, working Pathfinder install, fully‑wired genuine Meridian™ 400W complete audio hardware.
• After activation, run a complete function test. Verify each speaker output, equaliser modes and subwoofer response. Follow official JLR TOPIx workshop standards for this validation step.

Service Deliverables & JLR‑Trained Technical Support

You will receive VIN‑bound validated CCF package. You also get clear workshop‑oriented configuration and audio validation instructions. Meanwhile, we deliver valid VIN requests within the same business day in most cases. Our JLR‑trained support team works with repair shops and retrofit specialists. They help resolve any infotainment‑audio configuration‑related issues. This remains a pure coding‑only service. We do not ship physical amplifier, speaker or subwoofer hardware. For official Meridian audio‑system background information, visit public resources on the Land Rover official site.
