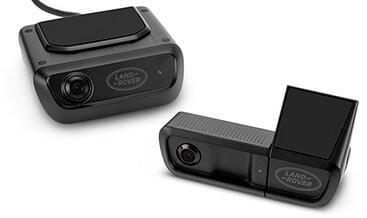

L663 Genuine Dash Cam

Product Overview

The L663 Genuine Dash‑Cam kit VPLKV0134 is factory‑engineered OEM hardware exclusively for the Defender L663 DOIP‑architecture chassis covering model‑years 2020‑2027 including 90,110 and 130 body variants. Unlike generic aftermarket dash‑cams powered by 12 V cigarette‑lighter adapters, this accessory integrates directly into the vehicle OEM wiring harness and battery‑management system, respecting L663 12‑volt low‑voltage protection protocols. This retrofit targets independent repair garages, off‑road specialists and competent DIY technicians working to JLR TOPIX workshop standards. Without correct CCF registration the accessory will trigger logged DTC entries across multiple DOIP control modules and selected features will remain non‑functional.

JLR Technical Specifications & Core Features

• Dual‑Channel Full‑HD Recording: Removable front camera plus adjustable‑angle rear secondary camera; 1080p@30fps simultaneous dual‑channel capture, continuous loop recording with protected event storage.
• G‑Sensor Impact Trigger: Built‑in accelerometer automatically locks footage files during collision, heavy‑impact or harsh deceleration events to prevent loop‑recording file over‑write.
• Radar‑Assisted Park‑Surveillance Mode†: Leverages vehicle‑fitted radar hardware to initiate recording for proximity events while vehicle is parked. Unit includes smart battery protection to suspend monitoring and preserve 12V cranking capacity when battery state‑of‑charge drops below factory thresholds.
• GPS Metadata Logging: Embeds timestamped speed and geolocation data within each saved video clip for admissible incident documentation.
• Manual Event Capture: One‑touch manual recording function for user‑initiated non‑collision road‑event capture.
• Media Access: Supplied OEM‑validated 32 GB micro‑SDHC storage card; footage review via dedicated iOS / Android mobile application or web‑browser interface.

†Radar‑based parking‑monitoring capability depends upon factory‑fitted radar modules in your L663 build. Always perform a JLR‑Decoder VIN‑decode to validate hardware fitment prior to ordering.

Installation & Compatibility Notes (JLR TOPIX Workshop Standard)

Physical installation must strictly follow TOPIX fitting procedure reference document G2749301 with corresponding SRO workshop code 06.30.45 for full‑kit fitment. After mechanical wiring and mounting is complete you must perform CCF parameter editing using Pathfinder or CCF‑Tools 4.8 to register the dash‑cam accessory within the vehicle configuration dataset. Failing to complete this DOIP programming step will store persistent DTC fault codes and the park‑surveillance feature will not activate. Post‑configuration module resets are required for BCM and infotainment control units; Pivi‑Pro soft‑reboot may be needed for full‑system recognition.

Global‑market L663 build specifications vary across NAS, EU, CN and RoW markets. Windshield hardware such as factory sun‑shield or sensor housings may impact mounting clearance. Use our free VIN‑decode tool to cross‑reference your vehicle factory build sheet for potential fitment conflicts before purchase.

Kit Contents

• Genuine OEM front dash‑cam module (removable)
• Rear adjustable‑angle secondary camera assembly
• L663‑specific OEM wiring harness for factory‑harness integration
• JLR‑qualified 32 GB micro‑SDHC memory card
• Factory mounting brackets, trim finishers and fastener kit
• Reference documentation pointing to TOPIX procedure G2749301

Ordering Information

Upon purchase you receive supporting documentation referencing the TOPIX fitting workflow plus guidance for post‑install DTC troubleshooting using our JLR‑Decoder DTC‑Library. This retrofit requires access to DOIP‑capable diagnostic hardware and CCF editing software. Submit your 17‑digit VIN at checkout for pre‑sales compatibility screening. If your vehicle fails hardware‑prerequisite validation we offer full‑order refund.
