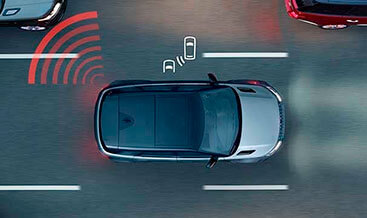

L663 Blind Spot System

Product Technical Overview

First, many base‑trim L663 vehicles leave production without blind‑spot safety hardware. Even if you install radar sensors and mirror LEDs, the ADAS functions will not activate properly. Instead, the vehicle will store persistent DTC faults within RHAM radar modules, BCM gateway and IMC infotainment units. For instance, you may get permanent ADAS warning messages on the instrument cluster. You may also trigger U0232‑00 radar‑module communication error codes. Therefore, this retrofit strictly follows official JLR TOPIX workshop standards. It uses OEM RHAM rear‑radar sensor assemblies. It also includes LED‑equipped side‑mirror housings and factory‑pin‑matched CAN‑bus harness. In addition, it avoids irreversible bumper or body shell cuts during installation.

Next, full blind‑spot‑system operation requires DoIP‑capable diagnostic hardware. Suitable tools include JLR Enet, JET Pro or Pathfinder software. After physical fitment, you must finish several critical diagnostic steps. To begin, edit CCF parameters to enable the BSD feature‑flag set. Then, run RHAM radar‑module initialization service routine. Following that, complete mandatory ADAS radar static alignment calibration. Finally, clear all retrofit‑related DTC entries. As an option, JLR‑Decoder offers on‑site configuration support. We also provide worldwide remote VIN‑based activation service.

Key Technical Specifications

• Vehicle Compatibility: Defender L663 90 / 110 / 130, 2020‑2026 DoIP secure‑gateway. Supports LHD and RHD variants. It requires intact Pivi Pro IMC infotainment hardware.
• Hardware Scope: Left & right RHAM BSD radar sensor units, LED‑warning side‑mirror assemblies, CAN‑bus wiring harness, bumper mounting brackets and fixings.
• Mandatory Diagnostic Procedures: Enable BSD feature flags inside CCF. Initialize RHAM radar control modules. Run static ADAS radar alignment calibration. Update gateway ADAS network settings. Scan and erase all stored DTCs afterward.
• Enabled Factory Functions: Blind‑spot mirror LED warning alerts. Fast‑approaching‑vehicle flash notification. Reverse traffic detection alerts. Instrument‑cluster ADAS status menu entries.
• Electrical Interface: 12 V vehicle power supply. High‑speed CAN‑ADAS bus communication. OEM sealed pin‑compatible connectors.
• Deliverables: OEM BSD hardware kit. TOPIX‑aligned installation procedure. Access to TEC‑DOC ADAS‑system interactive wiring diagrams.

JLR‑Compliant 3‑Stage Retrofit Workflow

1. VIN Pre‑Validation: First, submit your 17‑digit VIN to our JLR‑Decoder VIN‑Decoder tool. This step checks your factory ADAS build status, existing harness provision and gateway‑module variant. As a result, you confirm full compatibility before you place your order. Some base‑trim vehicles need extra CAN‑bus loom upgrades.
2. Physical Hardware Installation: Start by disconnecting the 12V battery following TOPIX safety guidance. Then remove rear bumper cover. Mount left and right RHAM radar sensors to factory bumper brackets. Fit LED‑warning mirror assemblies. Next, route and lock in the CAN‑ADAS harness. Lastly, refit bumper and reconnect the vehicle battery.
3. DoIP Diagnostic Activation & Calibration: Connect your DoIP VCI interface. To start, edit CCF and activate blind‑spot‑system feature parameters. After that, run RHAM module initialization and static radar‑alignment calibration. Then update gateway ADAS network configuration. Once finished, clear all retrofit‑generated DTCs. In the end, validate mirror‑LED warnings and reverse‑traffic alerts with TEC‑DOC functional‑test procedures.

Important Technical Notes & Limitations

Pure software‑only activation cannot enable BSD on non‑fitted base vehicles. You must install physical RHAM radar sensors plus LED mirror hardware. Once you finish the retrofit, run a complete module scan. Use our JLR‑Decoder DTC library to check for ADAS‑system fault codes. If radar static‑alignment calibration fails, warning alerts will behave erratically. Furthermore, this kit delivers standard blind‑spot and reverse‑traffic detection. Full active steering‑intervention requires separate lane‑change assist hardware.

What You Receive

Your order includes OEM‑grade Blind Spot System hardware set. It contains RHAM radar sensor pair, LED‑warning mirror assemblies, CAN‑ADAS harness and mounting fixtures. You also receive technical installation guidance plus access to relevant TEC‑DOC wiring resources. At checkout, you can select self‑configuration or our remote JLR diagnostic activation service. Meanwhile, workshop clients may add print tokens for licensed TOPIX service‑document exports.
