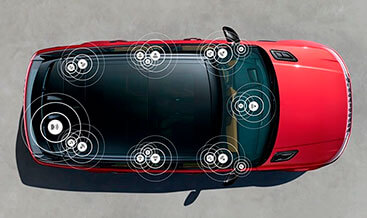

L461 Meridian™ Surround Sound System 800W

Service Overview

Meridian™ Surround Sound System 800W is JLR premium factory audio solution for Range Rover Sport L461 DOIP‑chassis vehicles (2023‑2027). Certain L461 builds contain the physical Meridian 800‑W DSP amplifier plus complete 19‑speaker surround‑array hardware, yet high‑end surround‑processing remains software‑locked within the CCF dataset for market‑trim restrictions. This coding service unlocks full Meridian 800 W functionality by configuring relevant audio‑system CCF enable‑flags via Pathfinder or CCF‑Tools 4.8 following TOPIX infotainment service workflows. This offering targets independent audio retrofit garages and competent DIY technicians with DOIP‑capable diagnostic hardware. Pure‑software CCF modification cannot install missing amplifiers, speakers or dedicated audio wiring harnesses.

Unlocked Technical Functionality

• Meridian Trifield 3D Surround Processing: Enables proprietary Meridian spatial‑audio mixing for balanced multi‑passenger surround‑sound staging.
• 800‑Watt DSP Amplifier Calibration: Activates full amplifier output profiles, factory‑tuned EQ curves and multi‑channel crossovers matched to the 19‑speaker setup.
• Enhanced Pivi‑Pro Audio Menu: Surround‑mode selector, height‑channel gain, bass‑management and Meridian‑preset options become available within infotainment sound‑settings.
• Preserves Base Audio Functions: AM/FM radio, Bluetooth streaming, CarPlay / Android‑Auto audio output remain fully functional without modification.
• Full Reversibility: Restore pre‑modification original CCF backup file to revert infotainment back to factory‑default configuration.
• Integrated Active‑Noise‑Cancellation: Unlocks vehicle‑matched ANC tuning working in conjunction with the Meridian amplifier hardware.

Vehicle Prerequisites & Technical Constraints (JLR Workshop Standard)

Two critical hardware items must be factory‑fitted to your L461 vehicle: Meridian 800 W DSP‑amplifier unit and complete 19‑speaker surround‑array including height‑channel, centre‑channel and sub‑woofer hardware. Always complete a JLR‑Decoder VIN‑decode to review factory build‑option codes verifying audio‑system hardware before placing your order. Vehicles missing amplifier or speaker hardware cannot achieve Meridian 800 W surround‑sound performance regardless of CCF parameter edits.

After writing updated CCF data to vehicle memory you must run module resets for Infotainment‑Control‑Module(ICM), Digital‑Audio‑Amplifier‑Module plus execute Pivi‑Pro full soft‑reset via Pathfinder service routines. Skipping these reset procedures will trigger DTC fault‑code U2101‑00 (Audio‑configuration mismatch) and Trifield 3D menus will not render on‑screen. Maintain stable 13.2 V supply voltage with battery‑support‑unit through all CCF‑write operations to avoid configuration‑file corruption risk. Post‑coding complete full‑system audio test and run a full DTC scan with our JLR‑Decoder DTC‑Library to clear non‑permanent fault‑entries.

What You Receive Upon Purchase

• TOPIX‑aligned step‑by‑step coding workflow for Pathfinder / CCF‑Tools operators
• Target CCF‑parameter‑reference table for Meridian 800W surround‑sound enable‑flags
• Mandatory ICM, audio‑amplifier‑module and Pivi‑Pro module reset‑sequence instructions
• DTC troubleshooting guidance covering post‑coding fault U2101‑00 audio‑configuration mismatch
• Best‑practice guidance for secure original‑vehicle CCF‑backup before modification
• Excerpt access from our TEC‑DOC library referencing L461 Meridian audio‑system service documentation.

Ordering Information

Submit your 17‑digit VIN on checkout for pre‑sales hardware‑prerequisite screening. This product delivers coding‑procedure documentation and parameter‑references; DOIP diagnostic hardware and Pathfinder / CCF‑Tools software are sold separately. Full‑order refund applies when your vehicle fails Meridian‑800W hardware‑fitment validation screening.
